U10 SERIES

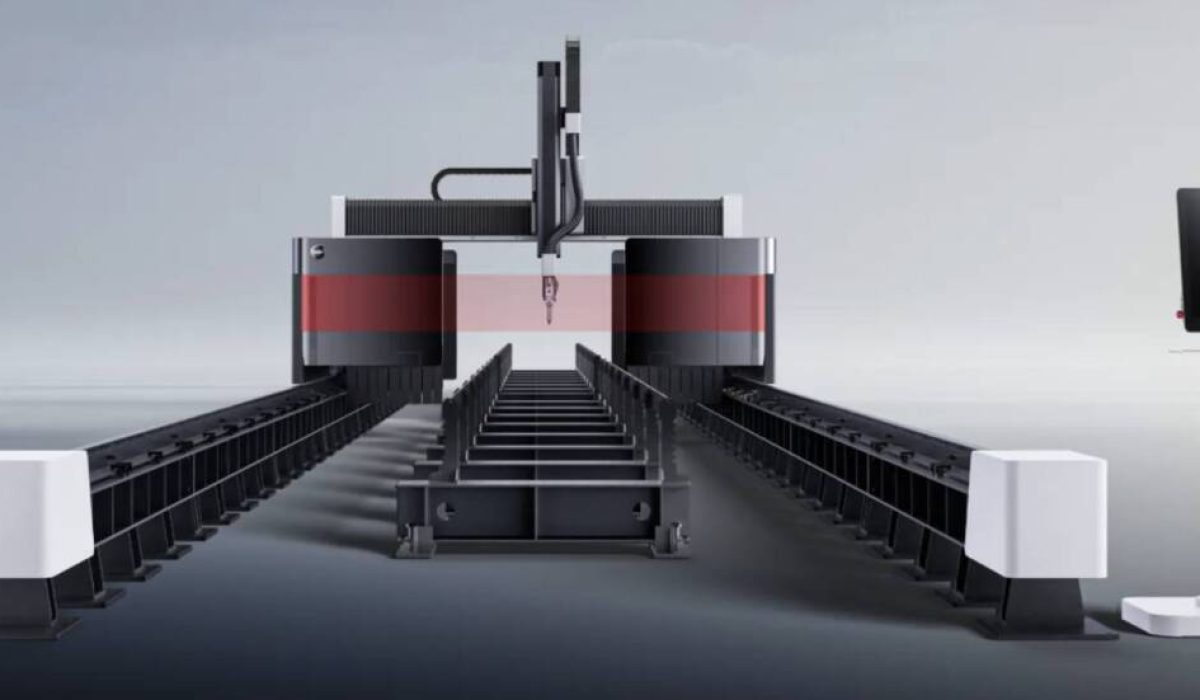

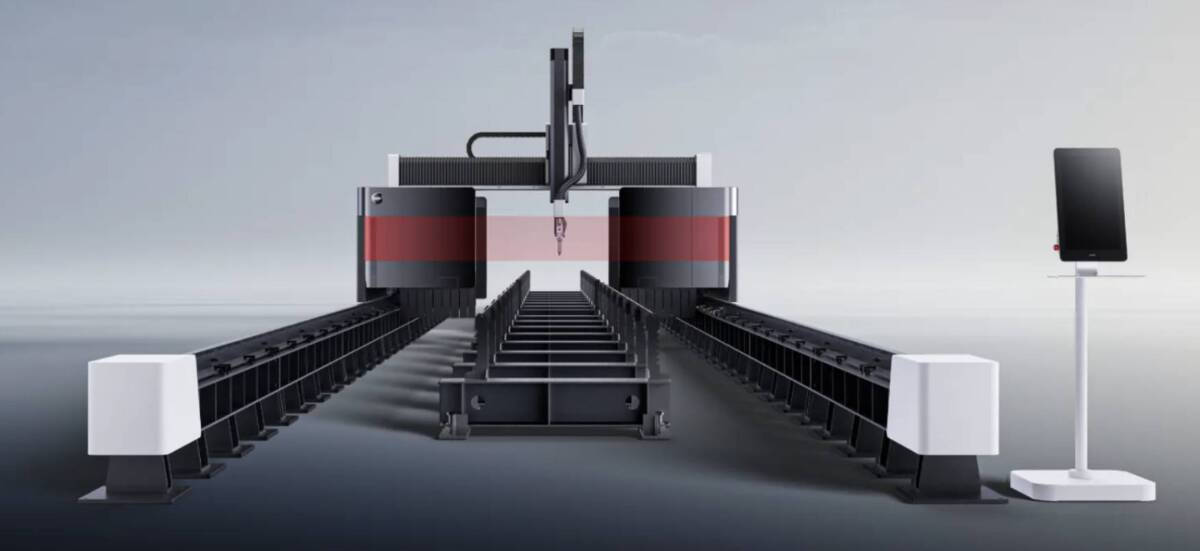

Bodor U10: Versatile Special Profile Laser Cutting Machine
The Bodor U10 is a versatile laser cutting machine designed for processing profiles, tubes, and metal sheets. It supports seamless handling of diverse steel structures.
Key Features:
Intelligent Processing: Equipped with real-time deviation correction to ensure accurate processing and reduce the risk of laser head collisions.
Multiple Compatibilities: Compatible with cutting foundations and Tekla drawings, optimizing workflow and reducing working costs.
Multi-Material Loading: Enables continuous processing of profiles, tubes, and metal sheets.

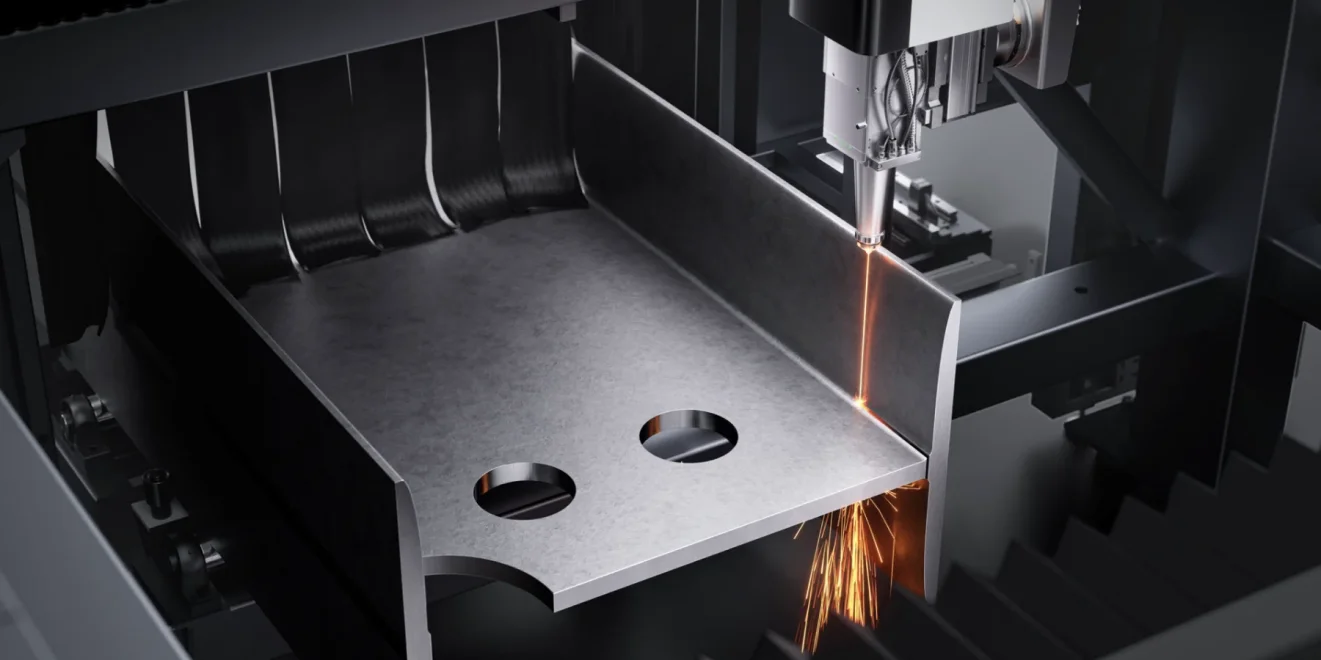

Versatile Cutting Capabilities: Easily performs perforation, vertical cutting, and bevel cutting on metal sheets, and supports various tube cutting functions.
U10 Product Performance
| Parameter | Bodor U10 |
|---|---|
| Processing Range (Profile) | 100mm×100mm-1500mm×600mm |
| Processing Range (Sheet-Straight Cutting) | 3200mm×28000mm |
| Processing Range (Sheet-Bevel Cutting) | 2800mm×28000mm |
| Processing Range (Square+Round Tube) | 200mm-850mm |
| Processing Range (Round Tube Only) | φ100mm-φ1200mm |
| Processing Length | ≤28000mm |
| Powers | 6000-20000W |
| Overall Dimensions | 33900mm×5030mm×4100mm |
