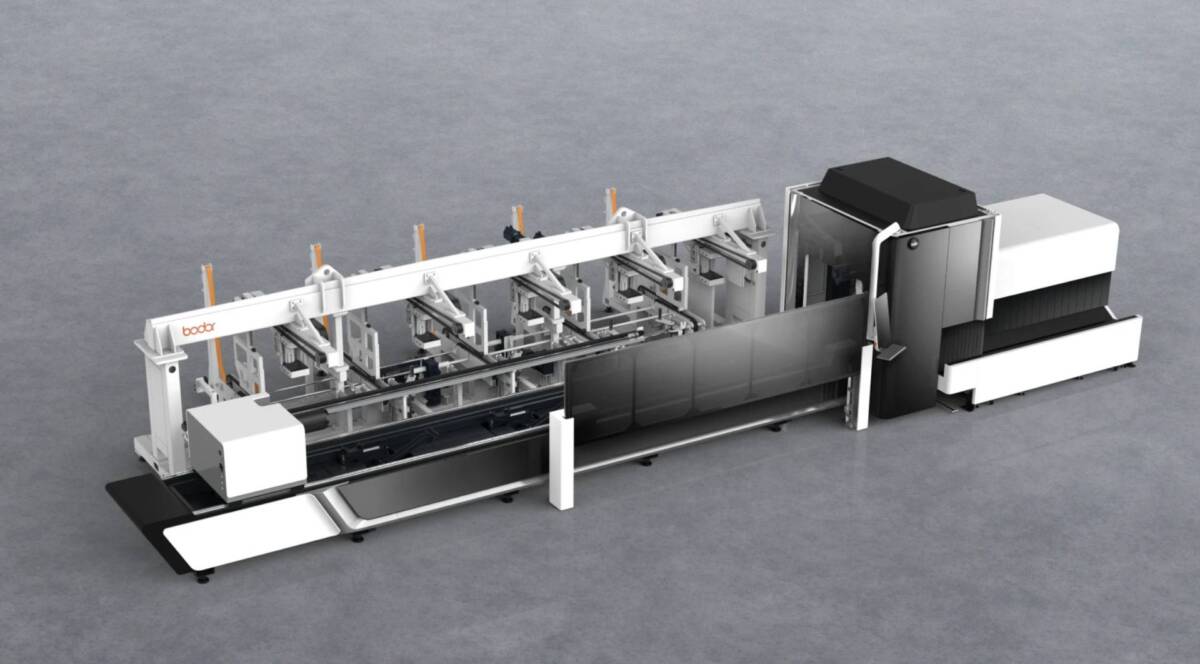

Bodor T-Trans: Automatic Tube Loading Device
The Bodor T-Trans is an automatic loading device designed for the T2 model, supporting fully automatic cyclic loading of round, square, and rectangular tubes. It saves time and effort while improving processing efficiency.
Key Features:
Simpler Operation: BodorThinker control system eliminates the need for “one person operating two machines.”
Fully Automatic Loading: Achieves fully automatic cyclic loading of tubes, reducing loading time and ensuring continuity and stability in processing.
Wider Loading Size Range: Supports full-range loading for round tubes (Φ20-Φ220mm) and square tubes (□20-□220mm).
Higher Load Capacity for Storage: Equipped with a belt storage system, the load capacity is increased to 2000kg (6.5m) and 3000kg (9.2m), with a bundle diameter of up to 900mm.
Scratch Prevention for Tubes: Uses rubber pads to prevent tube scratches during the loading process.
Smart Alarms: Material shortage alarms and mid-cycle loading ensure continuous processing.
T Trans Product Performance
| Parameter | T-Trans2-65 |
|---|---|
| Loading Dimensions | Round Tube: Φ20-Φ220mm; Square Tube: □20-□220mm |
| Max. Loading Weight | 2000kg (6.5m) / 3000kg (9.2m) |
| Bundle Diameter | Up to 900mm |
| Overall Dimensions | Varies based on length (e.g., 6.5m or 9.2m) |
