T SERIES

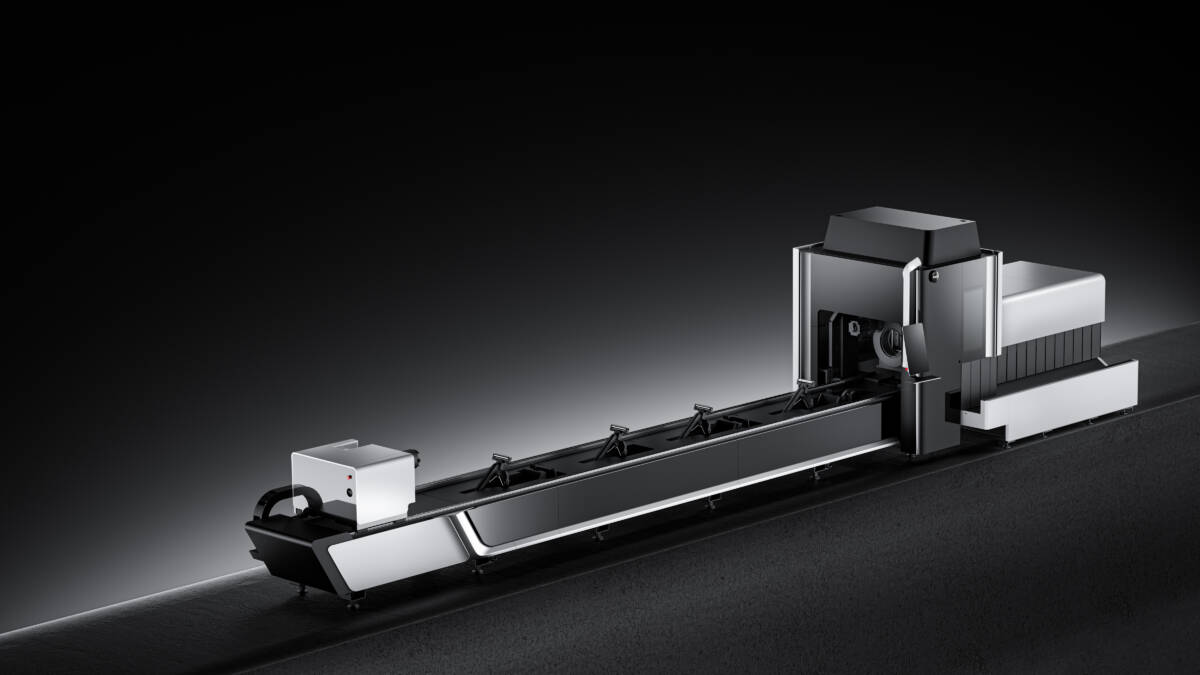

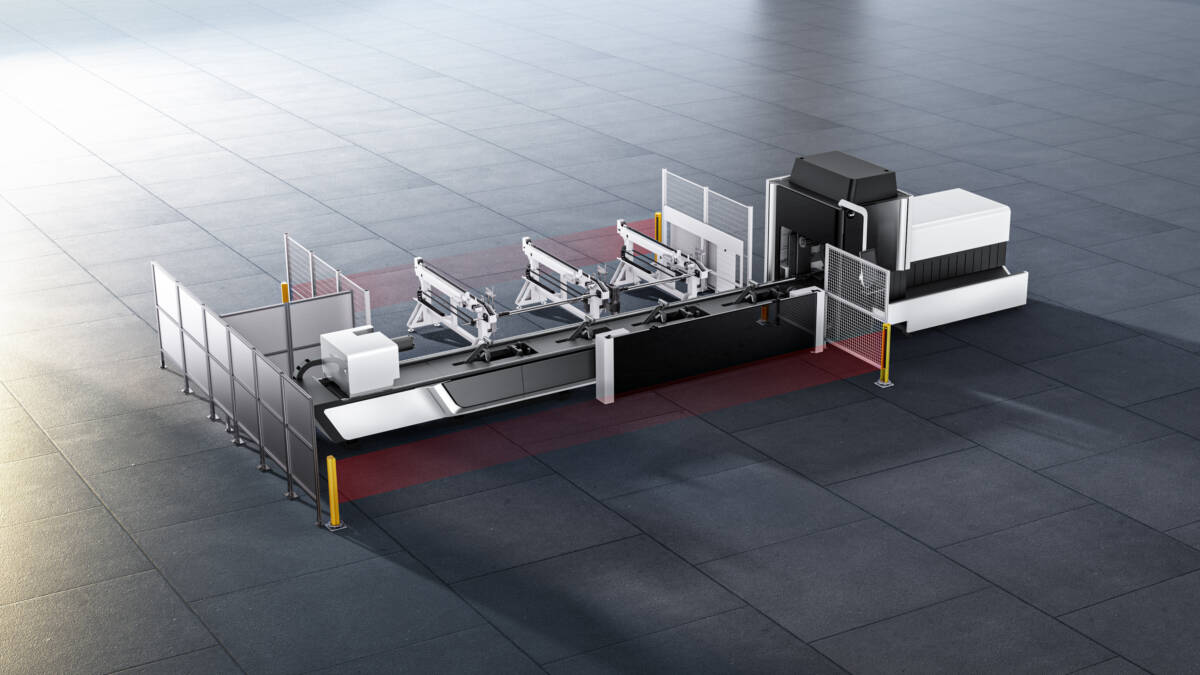

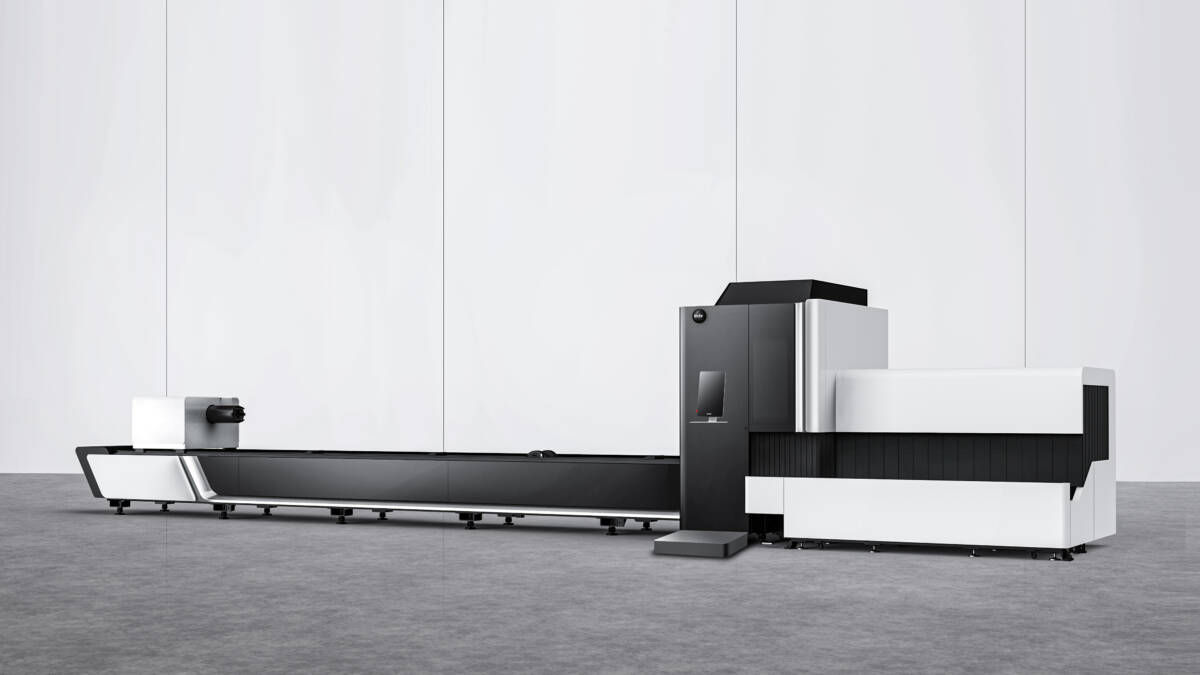

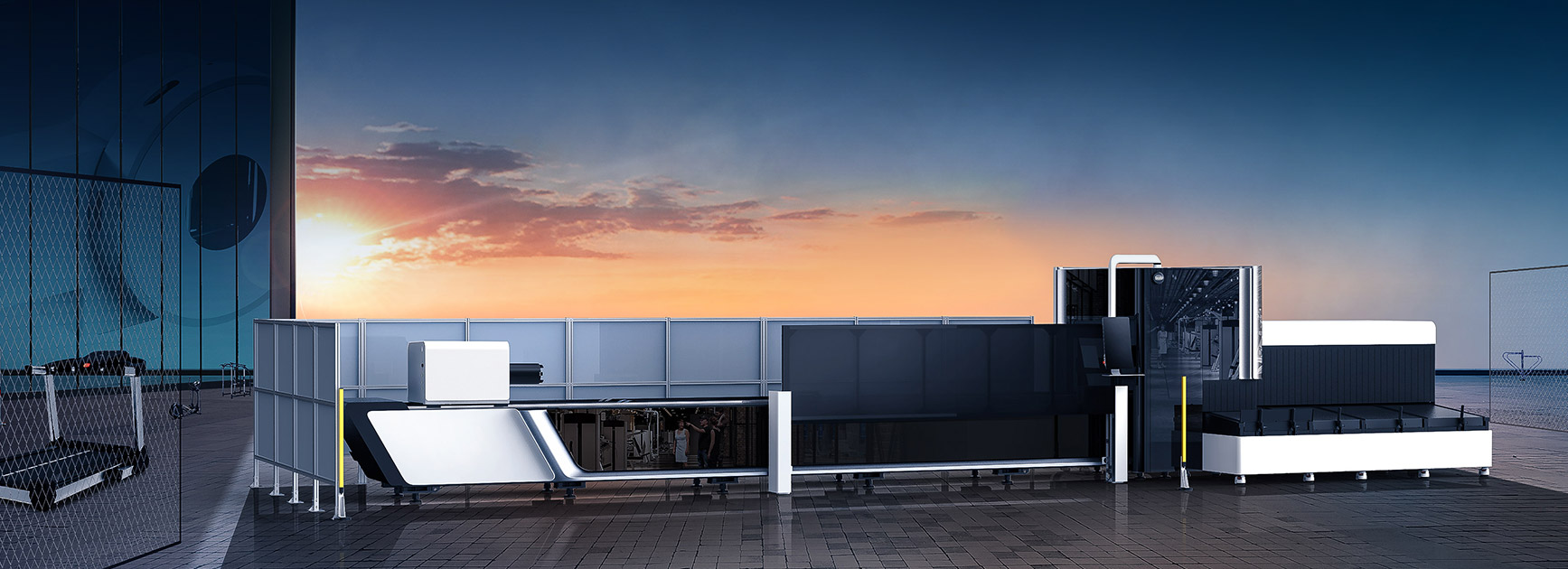

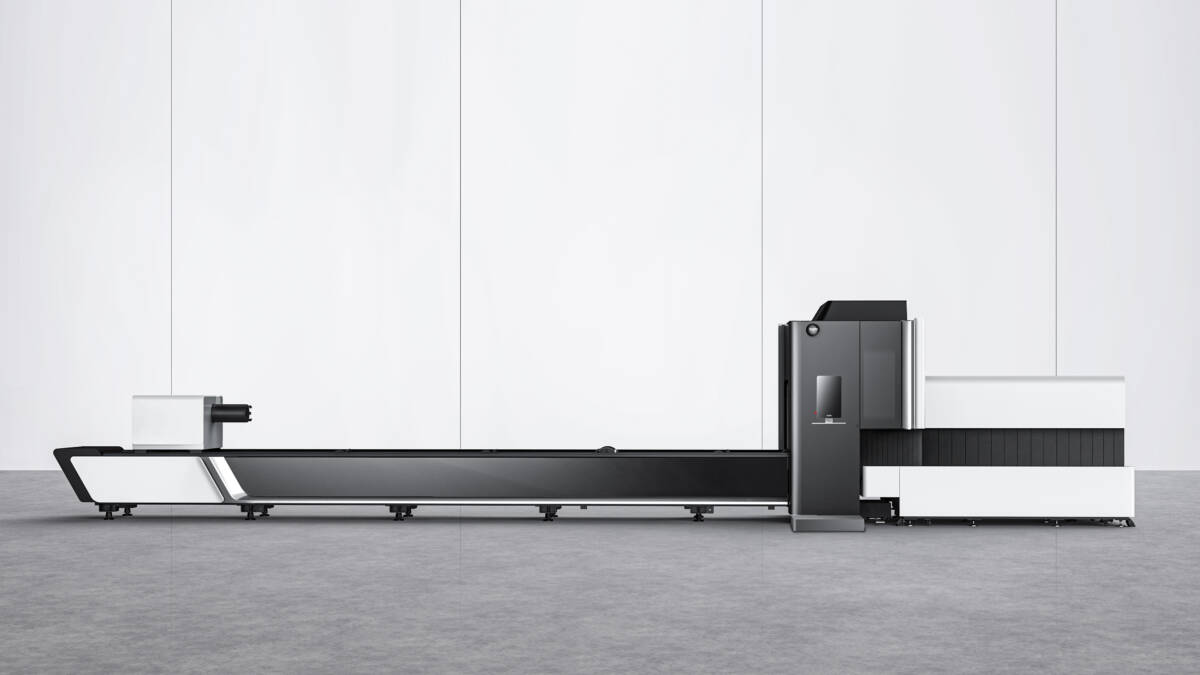

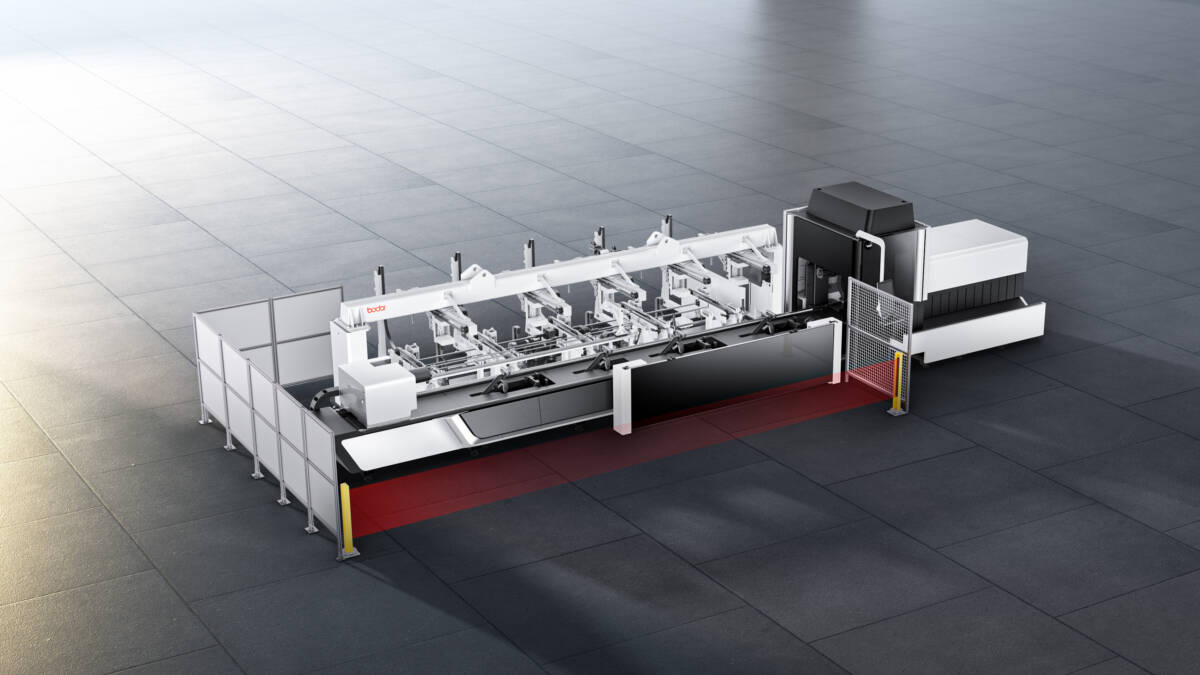

Bodor T Series: Performance Tube Laser Cutting Machine
The Bodor T Series Performance Tube Laser Cutting Machine is designed for high productivity and efficient tube processing. It offers a 20% faster processing efficiency for a single tube compared to other cutting techniques. The T Series is capable of cutting various tube shapes, including round, rectangular, and irregular profiles, with ease.
Key Features:
-
Efficiency Master: High productivity with 20% faster processing efficiency compared to other cutting techniques.
-
High-Speed Cutting: Power up to 12 kilowatts for completing projects quickly.
-
High Precision: Delivers remarkable precision, especially when cutting materials of varying thicknesses.
-
Versatile Applications: Suitable for cutting tubes of various shapes (round, rectangular, irregular profiles).
-
Triple Amplification: Ultra-Fast Cutting, 1 Second Centering, and Intelligent Adaption for Optimal Parameters.
-
Composite Rollers: Combined support of follow-up rollers, intelligent loading centering, and bionic U-shape roller.
-
Servo-Flipping Unloading: Reduces workpiece movement during cutting, enhancing accuracy, and includes automatic material sorting.
-
Weld Seam Identification: Optional automatic detection of weld seam positions for 100% precise identification and avoidance.
-
Mango Wireless Controller: One-Handed Operation, Comfortable Grip, Attachable to any sheet metal.
Demo Videos
T Series Product Performance
| Model | Round Tube Diameter | Square Tube Side Length | Max Raw Material Length | Max Tube Weight | Max Chuck Rotation Speed | Max Acceleration | Overall Dimensions | Cutting Power |
|---|---|---|---|---|---|---|---|---|
| T2 | 8mm-230mm | 8mm-230mm | 6500mm / 9200mm | 300kg | 175r/min | 1.5G | 12,900mm2370mm2650mm / 15,900mm2370mm2650mm | 3000W / 6000W |
| T3 | 25mm-356mm | 25mm-356mm | 6500mm / 9200mm | 600kg | 80r/min | 1.6G | 14,600mm2580mm3300mm / 17,700mm2580mm3300mm | 3000W / 6000W |
