Q SERIES

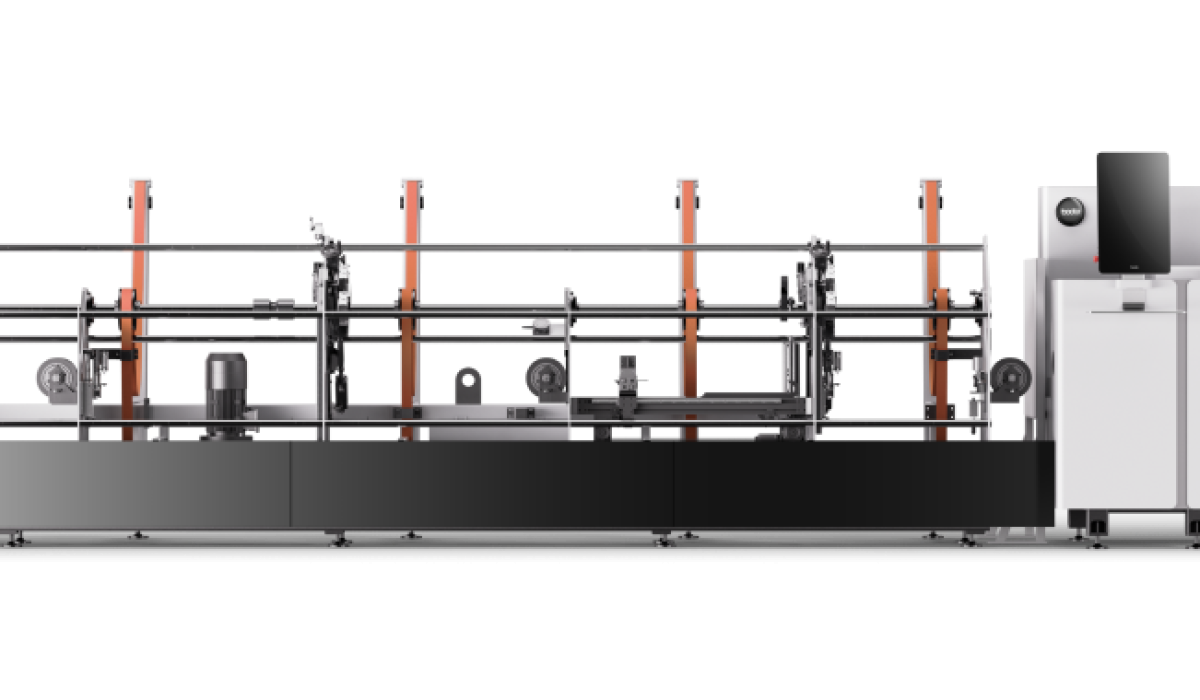

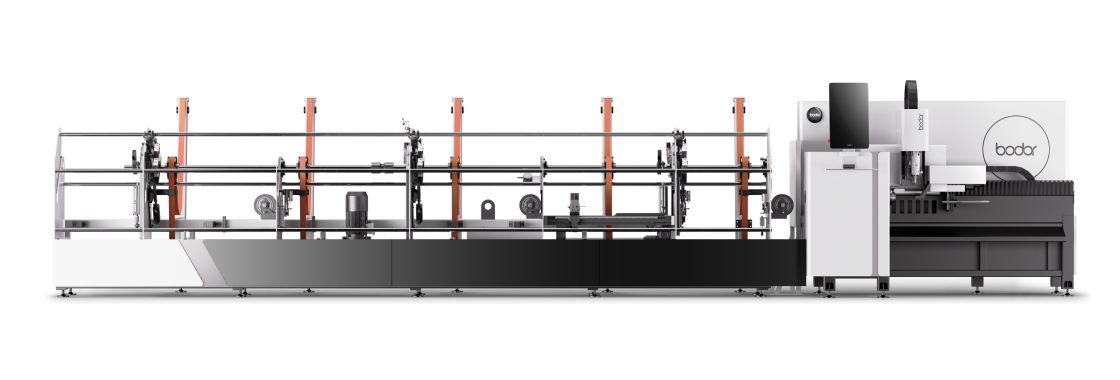

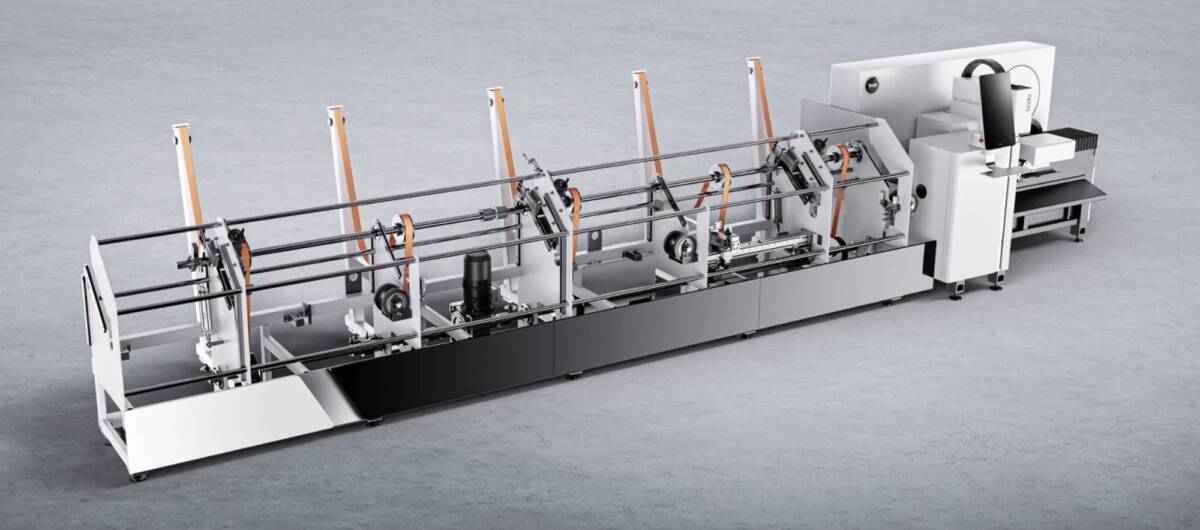

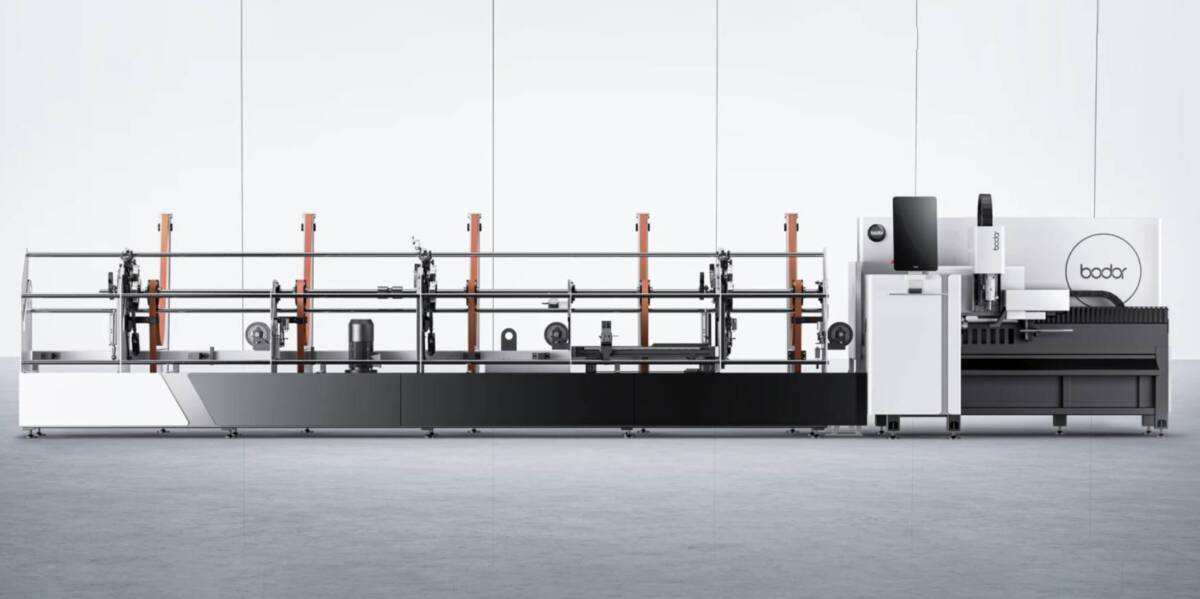

Bodor Q0 Pro: Small Tube High-Efficiency Laser Cutting Machine
The Bodor Q0 Pro is a small tube high-efficiency laser cutting machine. It is designed for small tube processing and has a fully automatic loading device, which significantly increases production efficiency.
Key Features:
High Processing Efficiency: Designed for small tube processing with a fully automatic loading device.

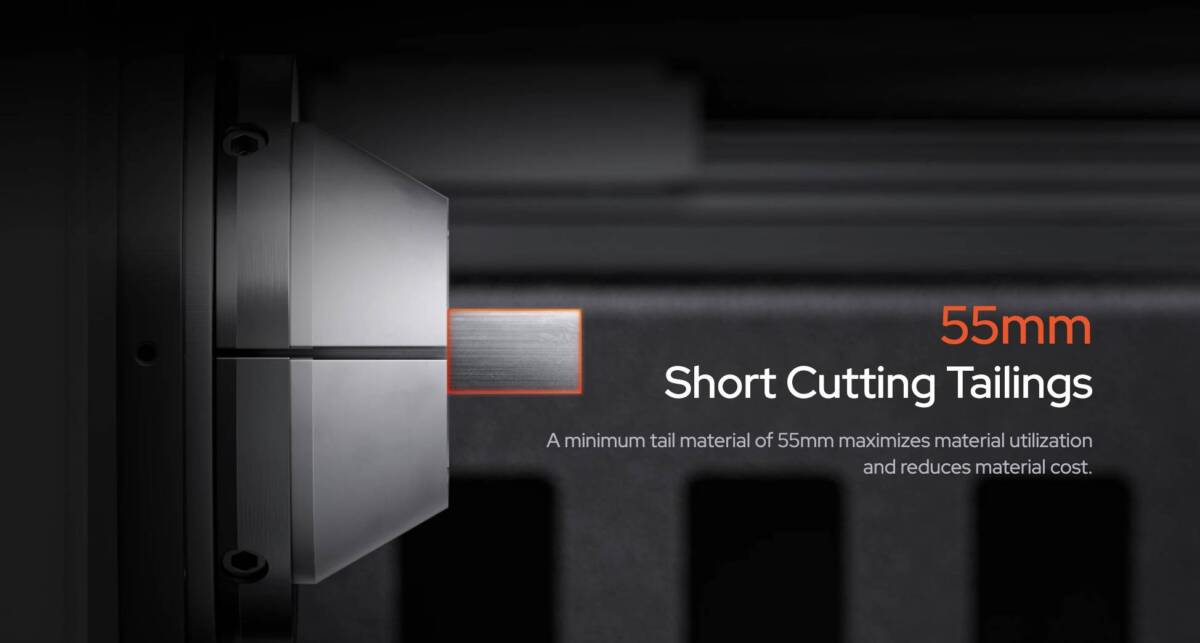

Maximum Material Utilization: Minimum tail material of only 55mm.

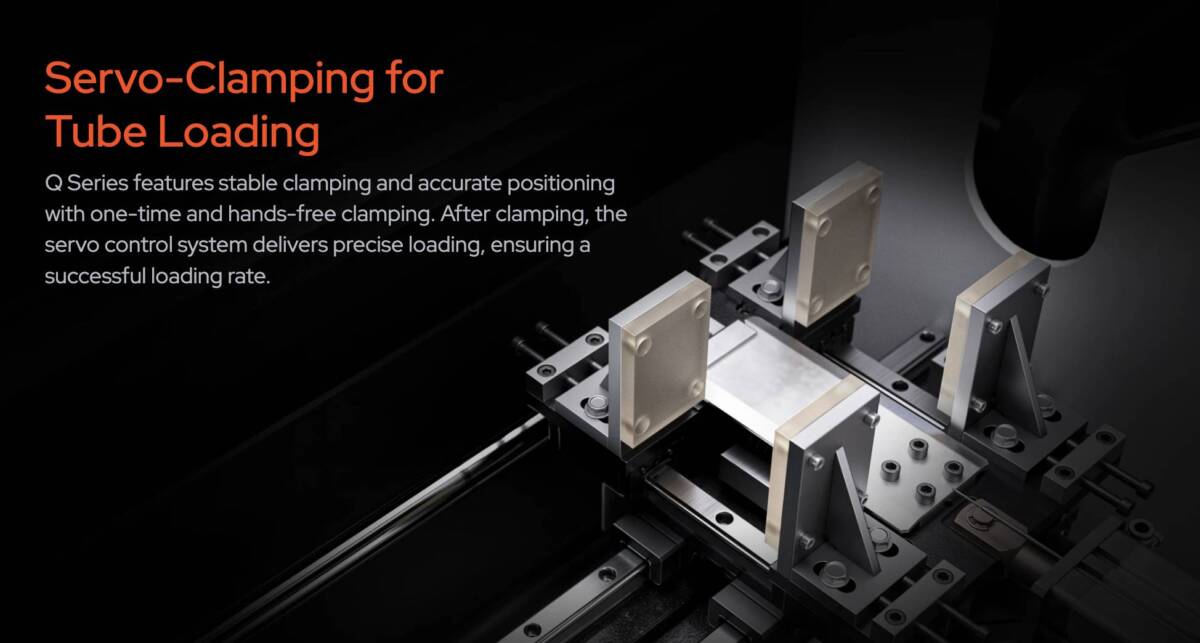

No Manual Intervention: Double-sided servo clamping for accurate tube clamping.
Automatic Loading: Standard configuration for stable loading of round, square, and rectangular tubes (20mm to 60mm diameter).
Fixed-Diameter Tube Chuck Collet: Prevents tube surface damage and allows for 5-minute chuck replacement.
| Feature | Specification |
|---|---|
| Round Tube Diameter | 10mm~60mm |
| Square Tube Side Length | 10mm~60mm |
| Max. Raw Material Length | 6500mm |
| Max. Tube Weight | 50kg |

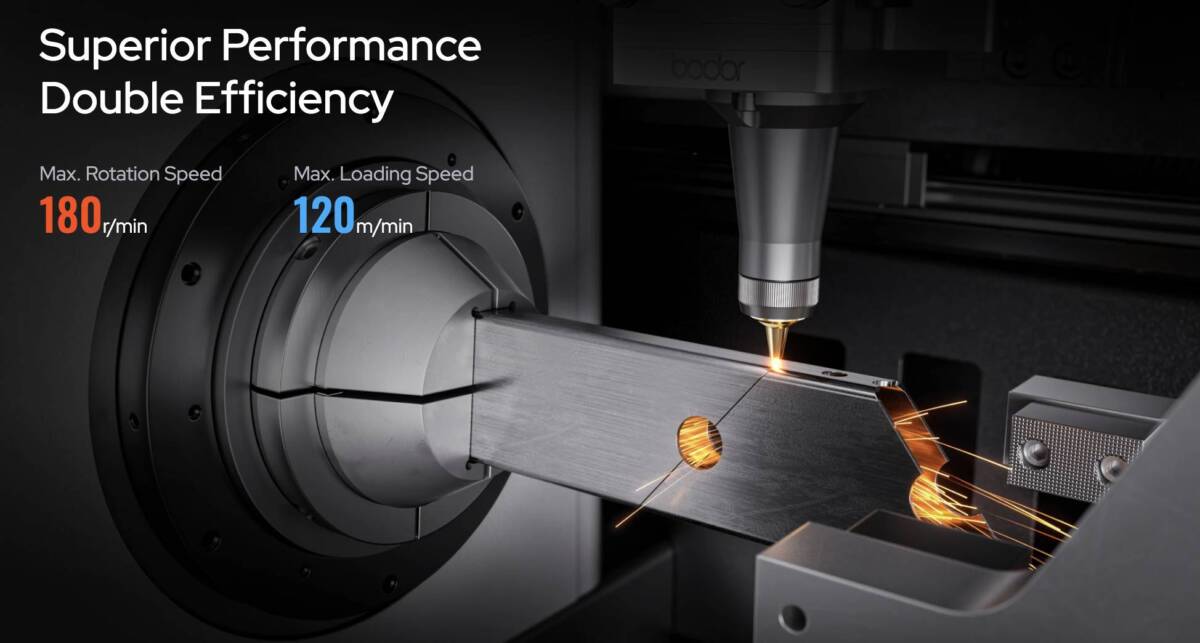

| Max. Chuck Rotation Speed | 180r/min |
| Max. Acceleration | 1.5G |
| Overall Dimensions | 11500mm*2900mm*1820mm |
| Cutting Powers | 3000W, 1500W |
