Pro Series

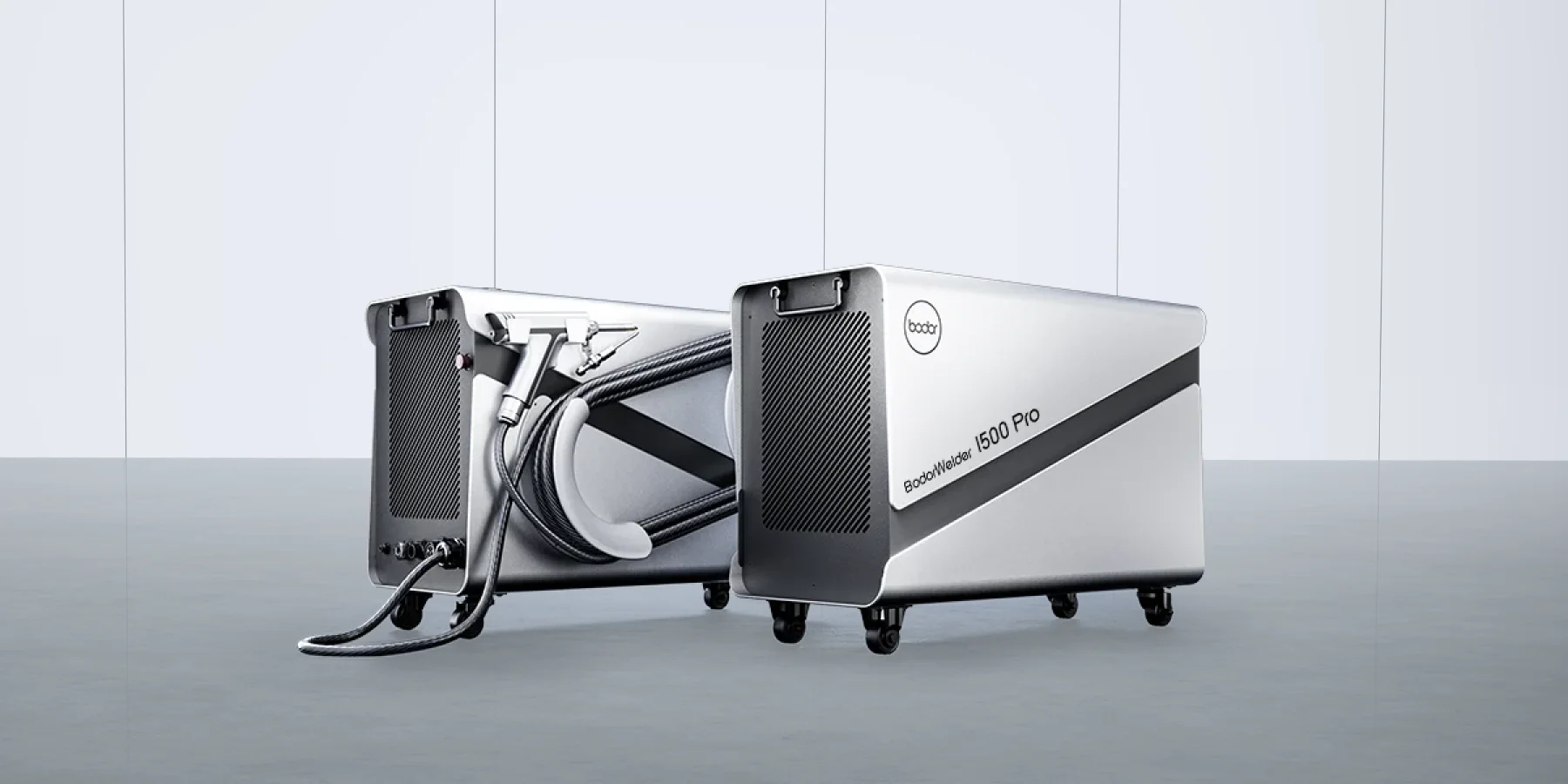

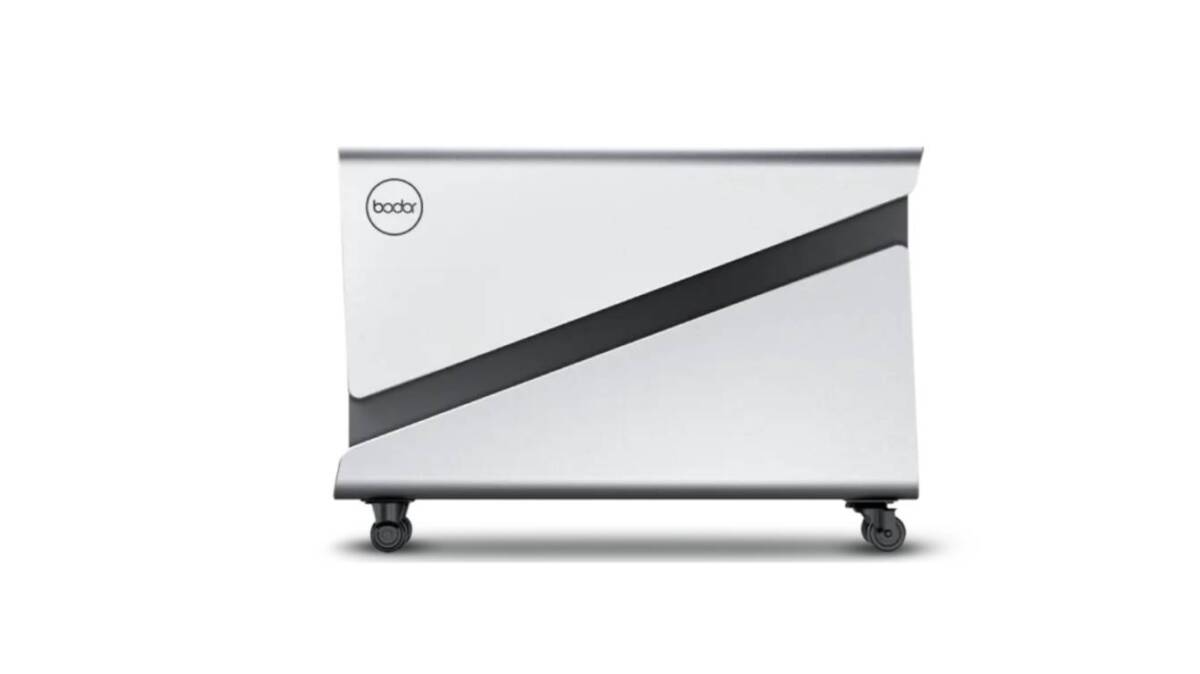

BodorWelder 1500: Self-Cooling Handheld Laser Welder
The Pro 1500 Self-Cooling Handheld Laser Welder redefines self-cooling and revolutionizes handheld welders. It offers 24/7 stable operation with continuous light output, even in extreme conditions ranging from -20°C to 60°C and up to 90% relative humidity. It features a one-knob control for adjusting and storing customized welding solutions. The Pro 1500 maintains stable performance in harsh environments, tested by international laboratories for continuous light output. Its compact size and lightweight design provide ultimate flexibility and portability.
Key Features:
Intelligent Circulating Constant Temperature System: For automatic sensing and precise temperature control.
High-Performance Condensation Cooling Device: With an ultra-large fin area and efficient cooling material.
Self-Developed High-Converting Light Source: For lower heat generation and a continuous high-energy beam.
Efficient Compressor and Intelligent Refrigerant Control: For automatic cooling of core components.
One-Knob Interactive Design: For parameter adjustment, processing sets saving, and starting processing.
Pro Series Product Performance
| Parameter | Value |
|---|---|
| Cooling Method | Self-Cooling |
| Powers | 1500W |
| Overall Dimensions | 850mm×420mm×570mm |
| Operating Temperature | -20℃~60℃ |
| Storage temperature range | -25℃~65℃ |
| Fiber Length | 10m |
| Welding Thickness (CS) | 5mm |
| Welding Thickness (SS) | 5mm |
| Welding Thickness (AL) | 4mm |
| Operating Voltage | 200V-240V |
| Operating Frequency | 50Hz/60Hz |
| Weight | 65kg |
| Welding Thickness (Brass) | 2mm |
| Floor Space Occupied | 0.24 ㎡ |
