P SERIES

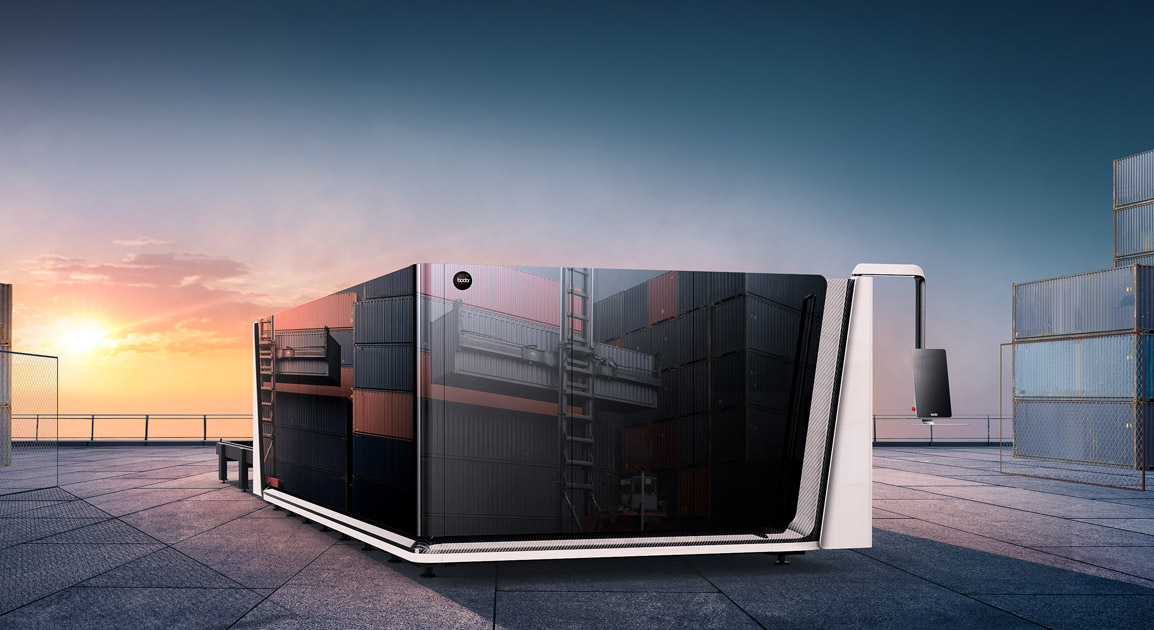

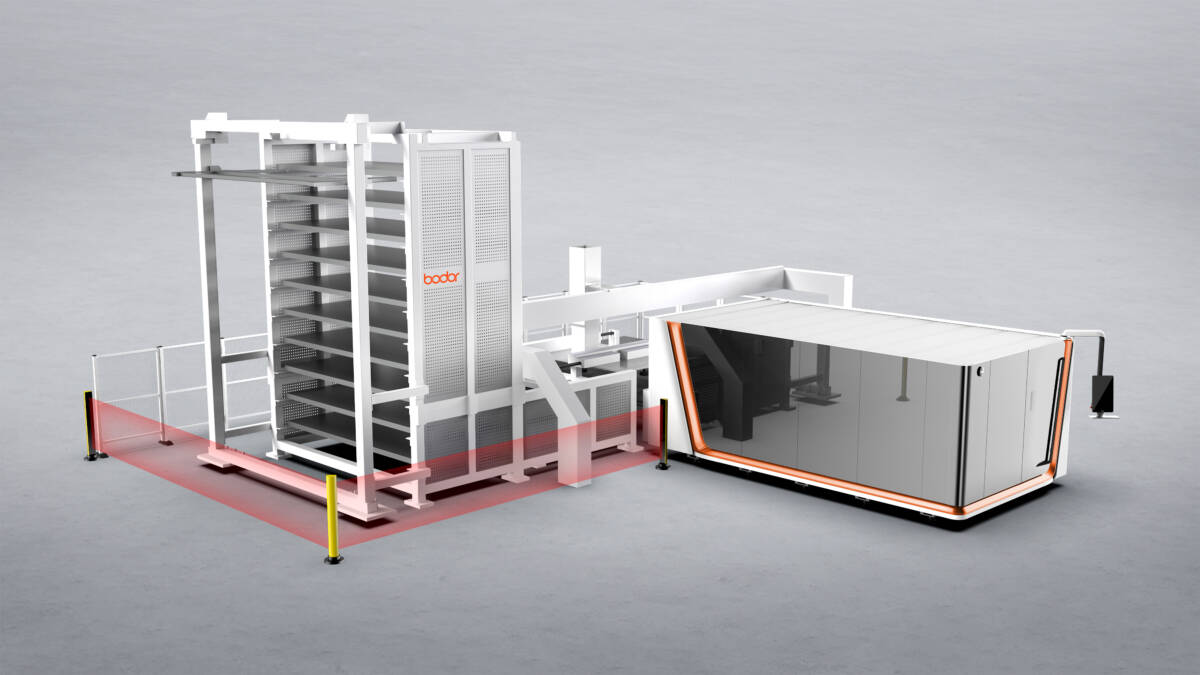

Bodor P Series: All-Around Sheet Metal Fiber Laser Cutting Machine
The Bodor P Series is an all-around sheet metal fiber laser cutting machine. It increases the processing efficiency of a single sheet by 25%, setting a new record for production output. The shortest time for a 1m idle movement speed is only 480ms, allowing the laser head to instantly reach the cutting position and commence the cutting process immediately.
Key Features:
-
Supercharged Productivity: Automated cutting with a single click.
-
Resource Efficiency: Designed for efficient use of materials, gases, and electricity.
-
User-Friendly Operation: One-second edge finding technology and an intuitive touchscreen interface.
-
Safety First: Equipped with visual collision detection and active collision avoidance functions.
-
Top-Notch Cutting Quality: Delivers exceptional cutting quality with faster cutting speeds.
-
Smart Experience: Equipped with Automatic Seam Compensation and Automatic Nozzle Changer.
Demo Videos
P Series Product Performance
| Model | Working Area | Max Linkage Speed | Max Acceleration | Z-axis Travel | Positioning Accuracy | Repositioning Accuracy | Dimensions | Table Load Bearing |
|---|---|---|---|---|---|---|---|---|

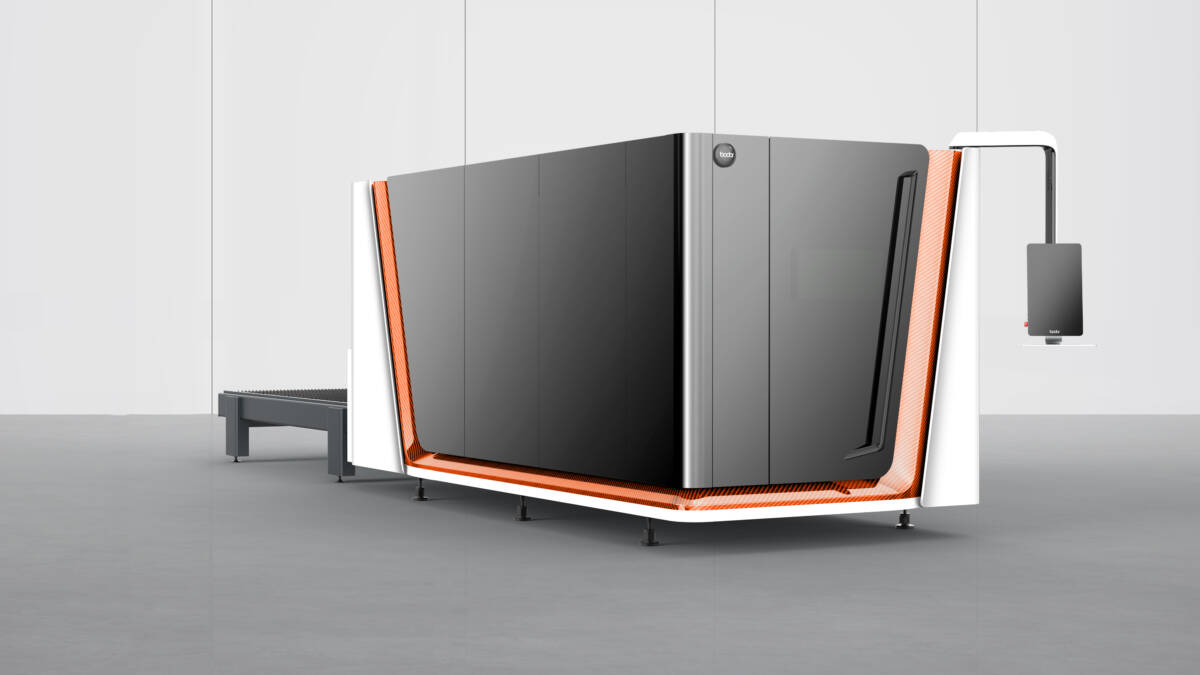

| P3 | 3048mm x 1524mm | 200m/min | 4.0G | 350mm | ±0.05mm/m | ±0.02mm | 9450mm × 2240mm × 2520mm | 3kW: 1090kg (30mm), 6–60kW: 1450kg (40mm) |
| P4 | 4000mm x 2000mm | 200m/min | 4.0G | 370mm | ±0.05mm/m | ±0.03mm | 11,599mm × 3380mm × 2718mm | 2510kg |
| P6 | 6500mm x 2500mm | 200m/min | 2.8G | 370mm | ±0.05mm/m | ±0.03mm | 16,888mm × 3872mm × 2519mm | 5100kg |
| P8 | 8050mm x 2500mm | 200m/min | 2.8G | 370mm | ±0.05mm/m | ±0.03mm | 20,015.5mm × 3872mm × 2636mm | 6320kg |
| P12 | 12,500mm x 2600mm | 200m/min | 2.8G | 370mm | ±0.05mm/m | ±0.03mm | 29,306mm × 4050mm × 2611mm | 10,205kg |
