M TRANS

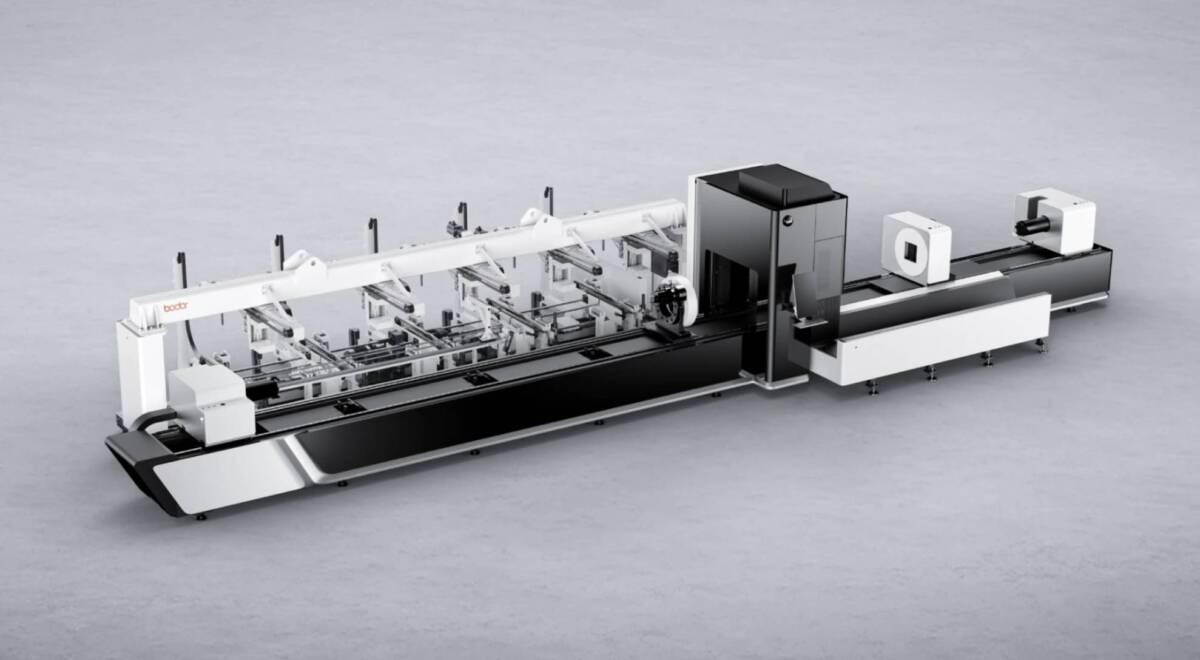

Bodor M-Trans: Automatic Tube Loading Device
The Bodor M-Trans is an automatic loading device designed for the M2 model, supporting fully automatic cyclic loading of round, square, and rectangular tubes. It saves time and effort while improving processing efficiency.
Key Features:
Simpler Operation: BodorThinker control system eliminates the need for “one person operating two machines.”
Smart Alarms: With material shortage alarms and mid-cycle loading, the M-Trans ensures continuous loading, maintaining processing continuity.
Fully Automatic Loading: Achieves fully automatic cyclic loading of tubes, reducing loading time and ensuring continuity and stability in processing.
Wider Loading Size Range: Supports full-range loading for round tubes (Φ20-Φ220mm) and square tubes (□20-□220mm).
Scratch Prevention for Tubes: Uses rubber pads to prevent tube scratches during the loading process.
Higher Load Capacity for Storage: Equipped with a belt storage system, the load capacity is increased to 2000kg (6.5m) and 3000kg (9.2m), with a bundle diameter of up to 900mm.
M Trans Product Performance
| Parameter | Value |
|---|---|
| Tube Size Range | Φ20-Φ220mm, □20 - □220mm, 220mm≥Side length≥20mm |
| Max. Tube Weight | 150Kg 23Kg/m |
| Max. Storage Capacity | 2000kg |
