M LOADER

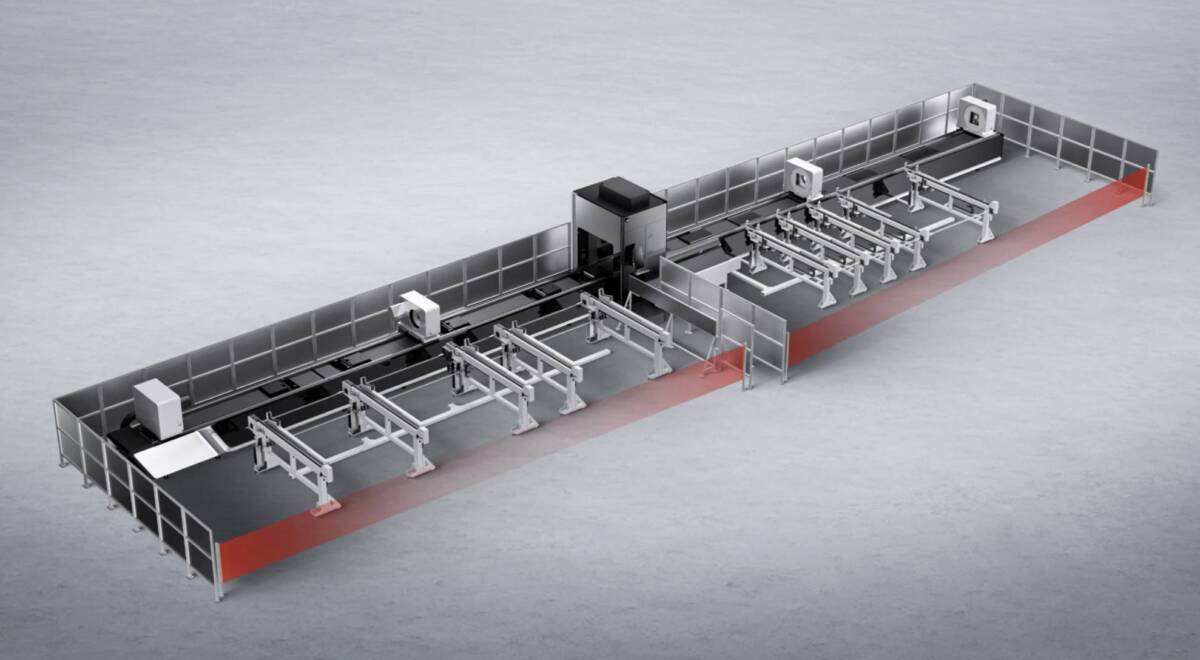

Bodor M-Loader: Automatic Loading Device
The Bodor M-Loader is an auxiliary device for the M2, M3, and M5 models, enabling automatic loading of round and square tubes, rectangular tubes, channel steel, and I-beams.
Key Features:
Smaller Footprint: Compared to the previous generation, the overall module size is reduced by 30%, saving space.
Smart Alarms: With material shortage alarms and mid-cycle loading, it ensures continuous loading and maintaining processing continuity.
Higher Load Capacity: The robotic arm has a maximum loading weight of 1.2 tons, with a maximum storage load of 4.8 tons.
Low Failure Rate: Driven by double chains, the operation is simple, and the failure rate is lower.
Wider Loading Size Range: Supports full-range loading for round tubes (Φ25-Φ340mm) and square tubes (□25-□340mm).
Higher Loading Success Rate: Guarantees a 100% success rate for loading.
