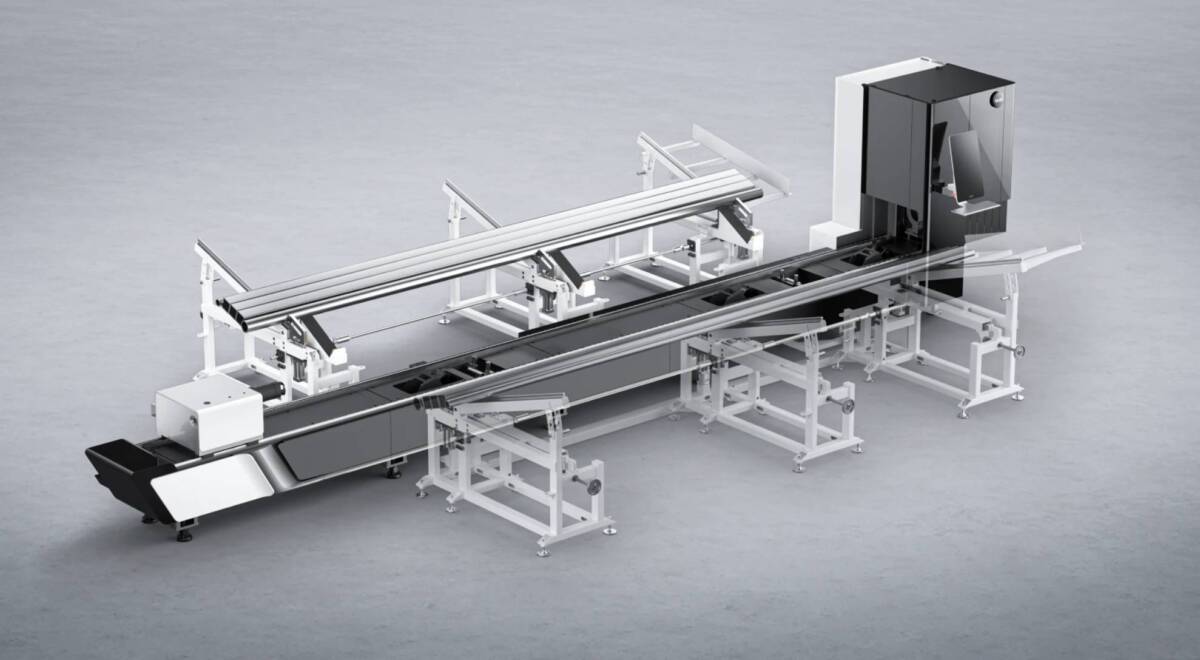

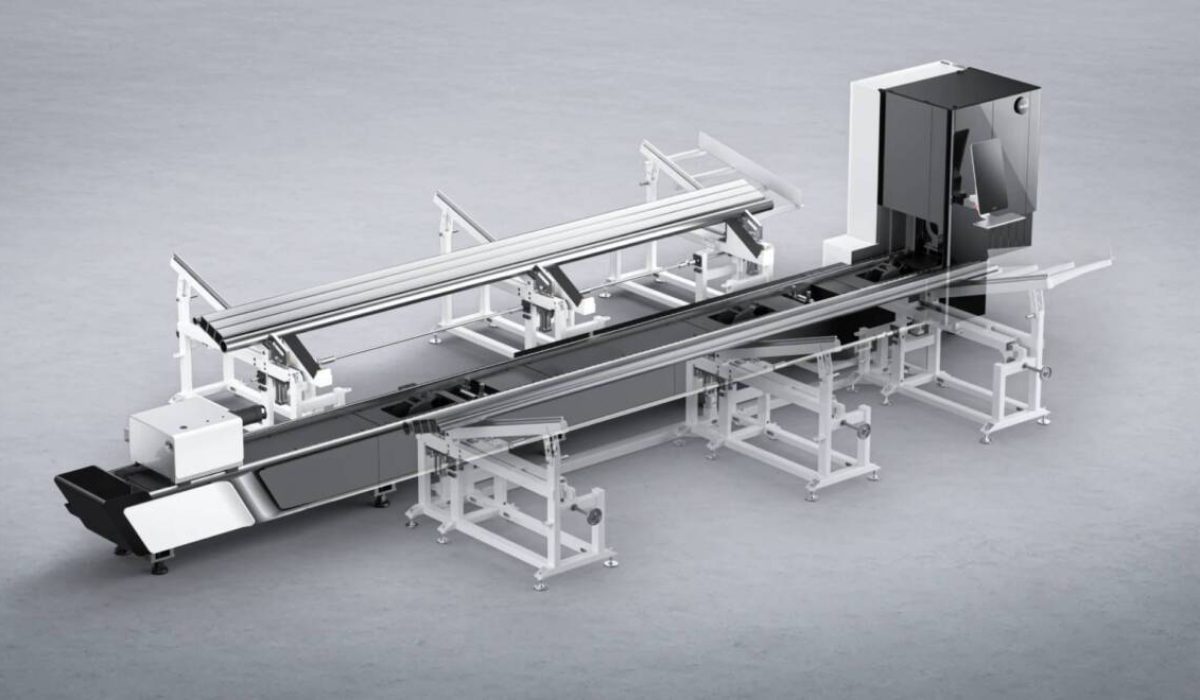

Bodor K-Trans: Automatic Tube Loading Device
The Bodor K-Trans automatic loading device is designed for K0, K1, K1 Plus, and K2 models. It supports automatic loading of various tube types, such as square, round, and rectangular tubes. This device saves labor and resources, enhancing processing efficiency.
Key Features:
Cylinder-Driven for Higher Efficiency and Lower Cost: All material handling processes are cylinder-driven for faster action and reduced electricity costs.
Higher Material Compatibility: Supports automatic cyclic loading for tube dimensions from Φ16mm to Φ120mm and square tubes from □20mm to □120mm.
Higher Load Capacity: Equipped with belt-type material storage, increases load capacity to 1500 kg, reducing material refilling operations by half.
More Flexible Layout: Can be lifted and positioned on either side of the main machine with flexible configuration options, including compatibility with mirrored K1 main units.
Further Simplified Operation: Equipped with the BodorThinker control system, eliminates the need for “one person to control two machines.”
Less Clamping Failure: Equipped with centering rollers for tube alignment, ensures precise loading and improves the chuck’s clamping success rate.
Smart Alarms: With material shortage alarms and mid-cycle loading, the K-Trans ensures continuous loading, maintaining processing continuity.
K Trans Product Performance
| Parameter | K-Trans2-65 |
|---|---|
| Tube Size Range | φ16-φ110mm □20-□110mm |
| Max. Tube Weight | 80kg |
| Max. Storage Capacity | 1500kg |
