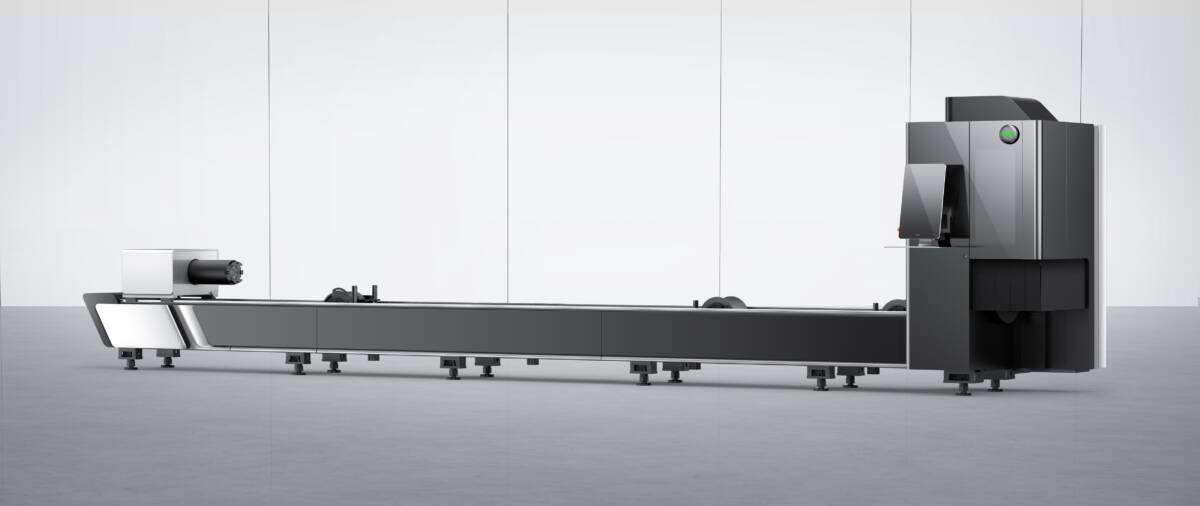

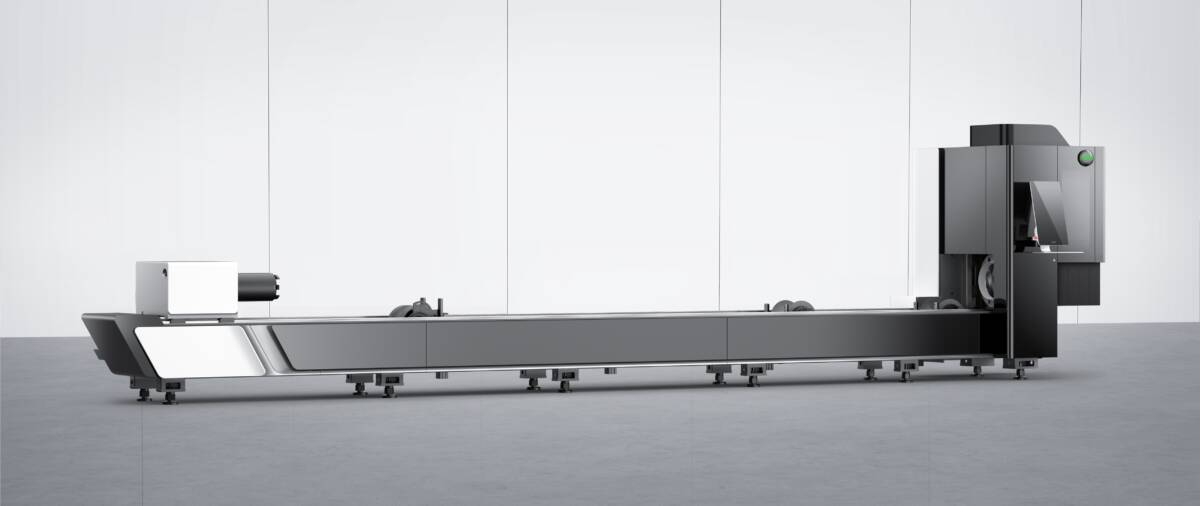

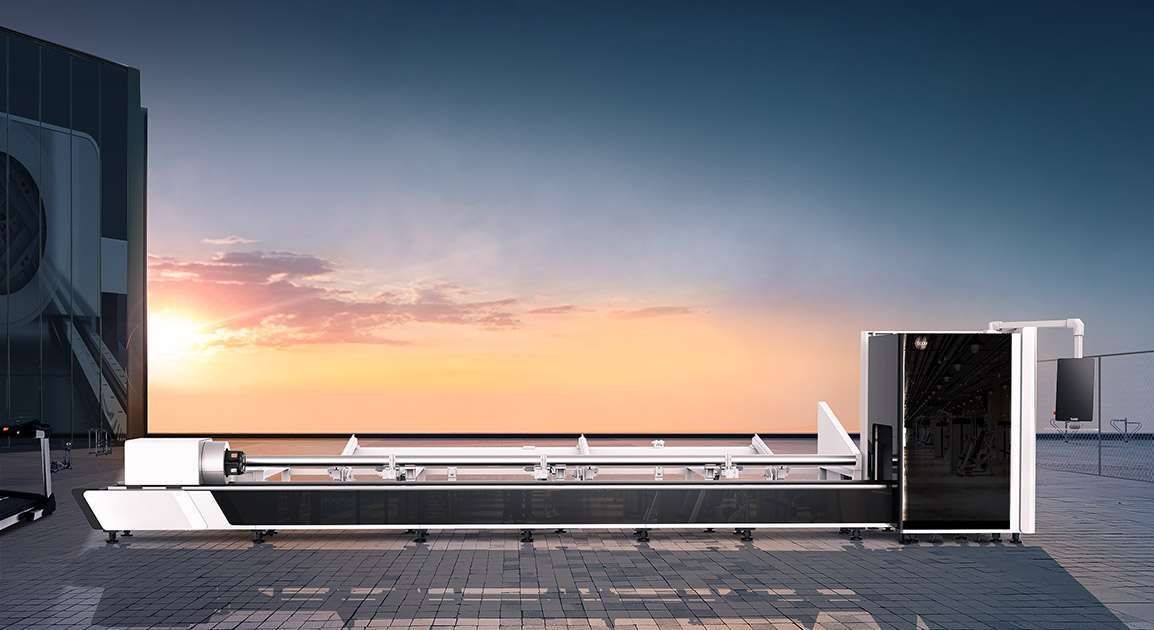

Bodor K Series: Entry-Level Tube Laser Cutting Machine
The Bodor K Series is an entry-level tube laser cutting machine designed to address high operational barriers in the market. It integrates features such as high-speed chucks, fast clamping response in 2 seconds, ultra-short tail material, and a one-click start. It provides a simple, safe, and environmentally friendly tube cutting solution and can cut or process various types of metal tubes into complex shapes.
Key Features:
-
Fast Clamping Response: The pneumatic chucks adopt a direct cylinder push structure, completing clamping in as fast as 2 seconds.
-
Short Cutting Tailings: A well-designed chuck avoidance structure achieves the shortest safety distance, maximizing material utilization and reducing material costs.
-
High-Performance: Adopts high-performance bus servo motors, improving processing efficiency.
-

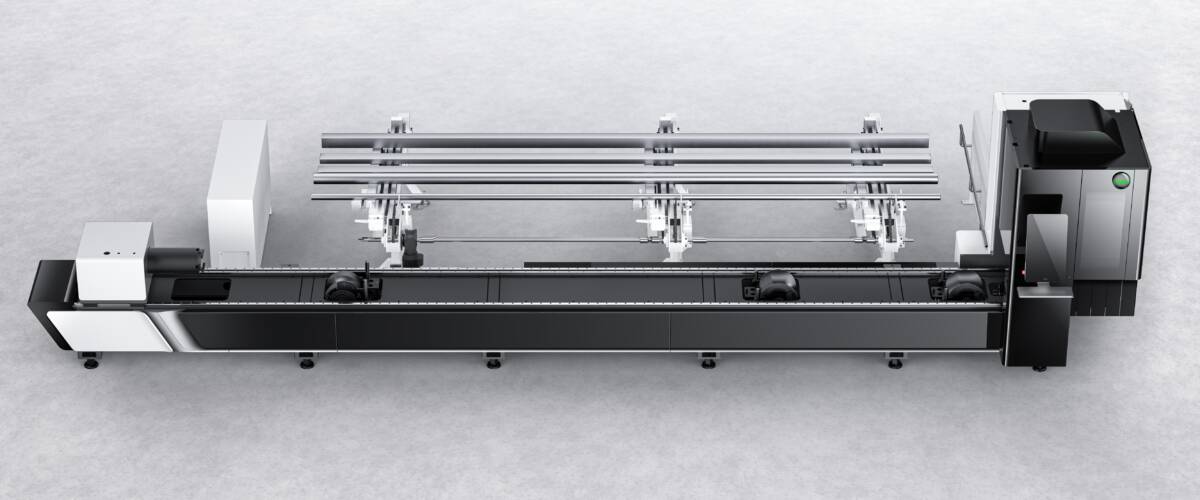

Automatic Loading/Unloading Devices: Optional auxiliary devices like K-Trans and K-Loader are available to improve processing efficiency and reduce labor costs.
Demo Videos
K Series Product Performance
| Model | Maximum length of pipe | Maximum speed of chuck feeding shaft | Maximum speed of laser head moving axis | Maximum acceleration of chuck feeding shaft | Maximum acceleration of laser head moving axis | Maximum speed of Z axis | Repeat Positioning Accuracy | Positioning Accuracy |
|---|---|---|---|---|---|---|---|---|
| K350-92 | 9200mm | 90m/min | 60m/min | 1G | 1G | ≥50m/min | 0.05mm/m | 0.03mm/m |
| K350-65 | 6500mm | 90m/min | 60m/min | 1G | 1G | ≥50m/min | 0.05mm/m | 0.03mm/m |
| K230-92 | 9200mm | 90m/min | 60m/min | 1G | 1G | ≥50m/min | 0.05mm/m | 0.03mm/m |
| K230-65 | 6500mm | 90m/min | 60m/min | 1G | 1G | ≥50m/min | 0.05mm/m | 0.03mm/m |
| K120-65 | 6500mm | 100m/min | 60m/min | 0.8G | 0.8G | ≥60m/min | 0.05mm/m | 0.03mm/m |
