K LOADER PRO

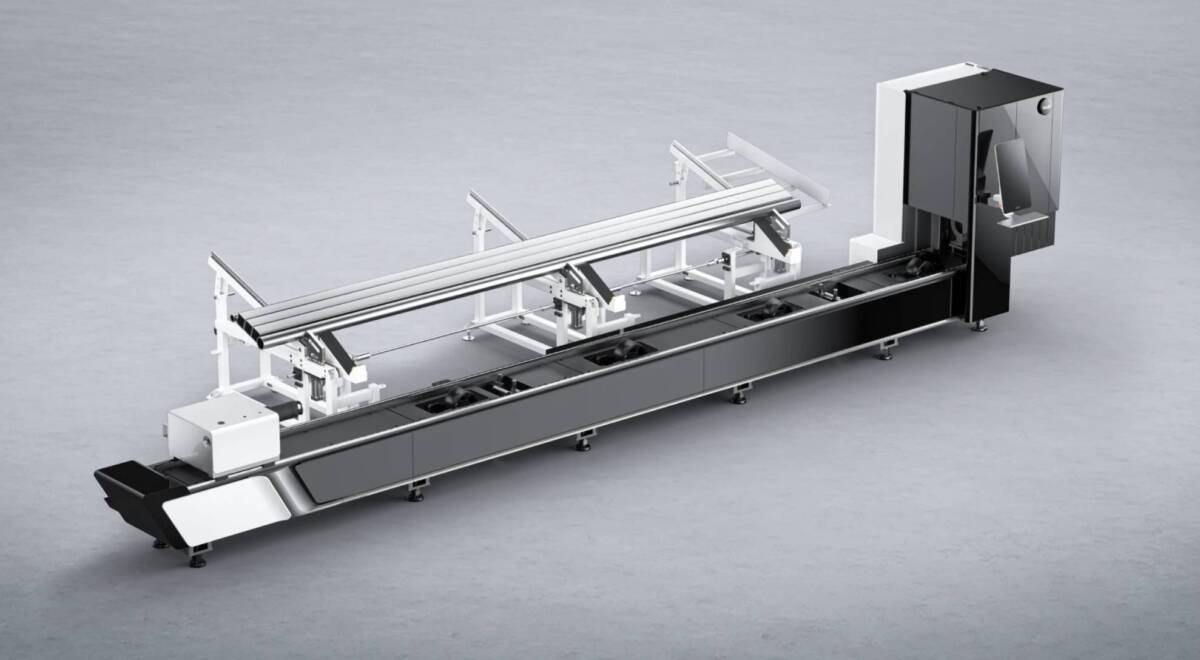

Bodor K-Loader Pro: Automatic Loading Device
The Bodor K-Loader Pro is an auxiliary loading device used for the automatic loading of various tubes such as square tubes, round tubes, rectangular tubes, I-beams, and channel steel, saving manpower and material resources and improving processing efficiency.
Key Features:
Automatic Loading: Uses a variable-frequency motor in the feeding area to ensure tubes are smoothly sent for material distribution.
Diverse Tubes: Can meet the loading requirements of various tubes such as I-beams, H-beams, channel steel, round tubes, square tubes, and rectangular tubes.
Modular Structure: The modular loading module can match with machines of any length, minimizing floor space and ensuring convenient transportation.
One-Click Process: After setting relevant parameters in advance, processing can be started with one click to realize single-machine batch processing.
Safety Interlock: The cutting machine and the auxiliary loading device share the same emergency stop circuit, preventing equipment damage and personnel injury due to improper operation.
More Flexible Placement: Users can freely choose left or right placement position to make more rational use of space.
K Loader Pro Product Performance
| Model | Tube Size Range | Max. Tube Weight | Max. Storage Capacity | Compatible Models |
|---|---|---|---|---|
| K‑Loader3 Pro‑120 | φ25–φ340 mm, □25–□250 mm | 500 kg | 2500 kg | Bodor K Classic Model |
| K‑Loader3 Pro‑92 | φ25–φ340 mm, □25–□250 mm | 500 kg | 2500 kg | Bodor K Classic Model |
| K‑Loader3 Pro‑65 | φ25–φ340 mm, □25–□250 mm | 500 kg | 2500 kg | Bodor K Classic Model |
| K‑Loader2 Pro‑92 | φ25–φ340 mm, □25–□250 mm | 500 kg | 2500 kg | Bodor K Classic Model |
| K‑Loader2 Pro‑65 | φ25–φ340 mm, □25–□250 mm | 500 kg | 2500 kg | Bodor K Classic Model |
| K‑Loader1 Pro‑65 | φ25–φ340 mm, □25–□250 mm | 500 kg | 2500 kg | Bodor K Classic Model |
