ITransTower

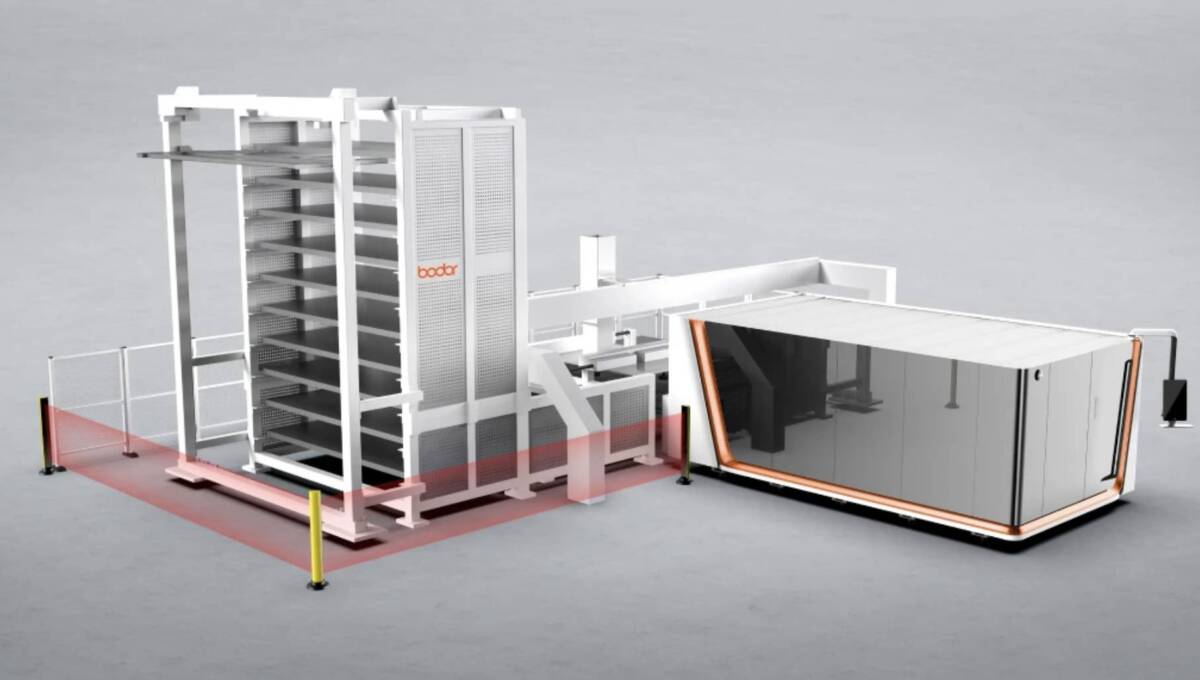

Bodor iTransTower: Automatic Loading Device
The Bodor iTransTower is an automatic device compatible with multiple cutting machines and capable of fully automatic sheet loading, unloading, and storage.
Key Features:
Efficient and Intelligent Continuous Processing: Streamlines production with minimal manual intervention.
Integrated Functions: Integrates material loading, unloading, and storage, achieving simultaneous operations.
Efficient Loading: One iTransTower can manage loading, unloading, and storage for multiple cutting machines.
Smart Zoning: Loads different-sized sheets with single-click adjustment, reducing manual intervention.
Error Warning: Material detection, shortage alarms, and abnormal material quantity alarms prevent cutting issues and reduce scrap rates.
ITransTower Product Performance
| Loading Dimensions | 1000mm*1000mm-3048mm*1524mm |
|---|---|
| Max. Sheet Thickness | 20mm |
| Max. Loading Sheet Size | 3048mm*1524mm |
| Min. Loading Sheet Size | 1000mm*1000mm |
| Overall Dimensions | 12300mm*12000mm*6100mm |
| Weight | - |
| Max. Loading Weight | 720kg |
| Min. Sheet Thickness | 0.8mm |
