iTower

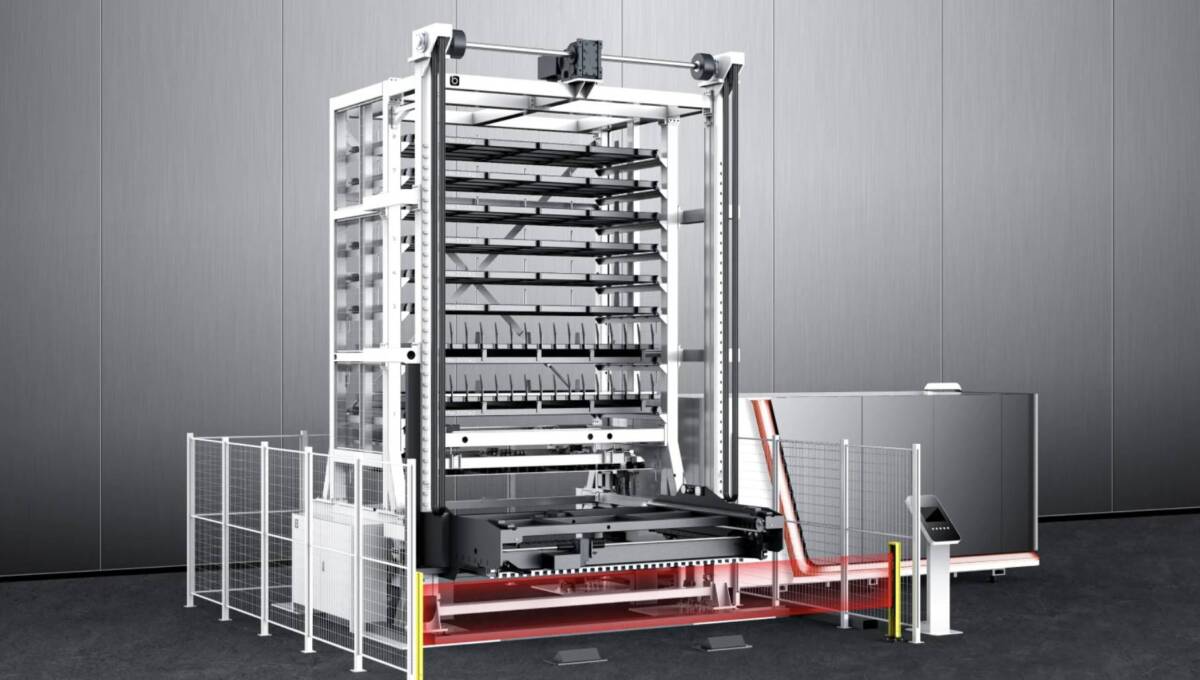

Bodor iTower: Automatic Loading Device
The Bodor iTower is an automatic loading device compatible with various cutting machines. It has a compact structure and small footprint, enabling automatic loading and unloading of metal sheets and storage of raw materials and finished products.
Key Features:
Unattended Operation: Enables unattended operation for short periods, adding value and boosting efficiency.
Small Footprint: Occupies less space with flexible layout options, achieving maximum space utilization of the workshop.
Error Warning: With material detection, shortage alarms, and abnormal material quantity alarms, it prevents cutting issues and reduces scrap rates.
Multi-Sheet Separation: Features intelligent sheet separation, air-blowing separation, and magnetic separation.
Multi-Spec Sheet Processing: Handles different sheet sizes with a single click adjustment, and different shapes and thicknesses of sheets can also be processed in a queue.
ITower Product Performance
| Loading Dimensions | 1000mm*1000mm-3000mm*1500mm |
|---|---|
| Max. Sheet Thickness | 25mm |
| Max. Loading Sheet Size | 3000mm*1500mm |
| Min. Loading Sheet Size | 1000mm*1000mm |
| Overall Dimensions | 11000mm*8500mm*6200mm |
| Max. Loading Weight | 900kg |
| Min. Sheet Thickness | 0.8mm |
| Applicable Industries | hardware accessories, construction machinery, medical devices, outsourced processing, and photovoltaic equipment. |
