ILOADER ECO

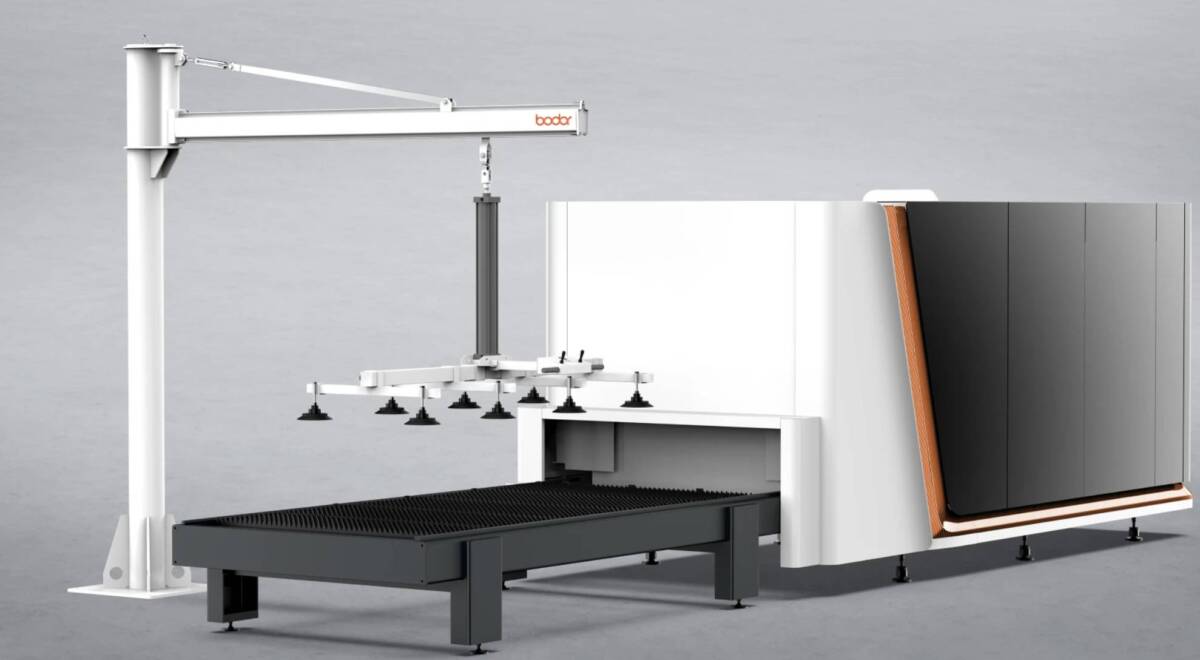

Bodor iLoader ECO: Semi-Automatic Auxiliary Loading Device
The Bodor iLoader ECO is a semi-automatic auxiliary loading device with a compact structure and easy operation. It assists with semi-automatic loading for manual operation, saving time and effort.
Key Features:
Semi-Automatic Auxiliary Loading: Provides effortless operation.
Efficient Sheet Processing: Can load sheets up to 8mm thick, boosting sheet processing efficiency.
Load for Two: One device can load materials for two cutting machines simultaneously.
Space Utilization: Takes up minimal floor space, maximizing the use of production space.
Flexible Positioning: Can be positioned left or right according to the on-site processing environment.
ILoader Eco Product Performance
| Parameter | iLoader ECO3 |
|---|---|
| Loading Dimensions | 400mm*400mm-1524mm*3048mm |
| Max. Sheet Thickness | 8mm |
| Max. Loading Sheet Size | 3048mm*1524mm |
| Min. Loading Sheet Size | 400mm*400mm |
| Overall Dimensions | 3655mm×2200mm×3422mm |
| Weight | 475Kg |
| Max. Loading Weight | 300Kg |
| Min. Sheet Thickness | 1mm |
