ILOADER

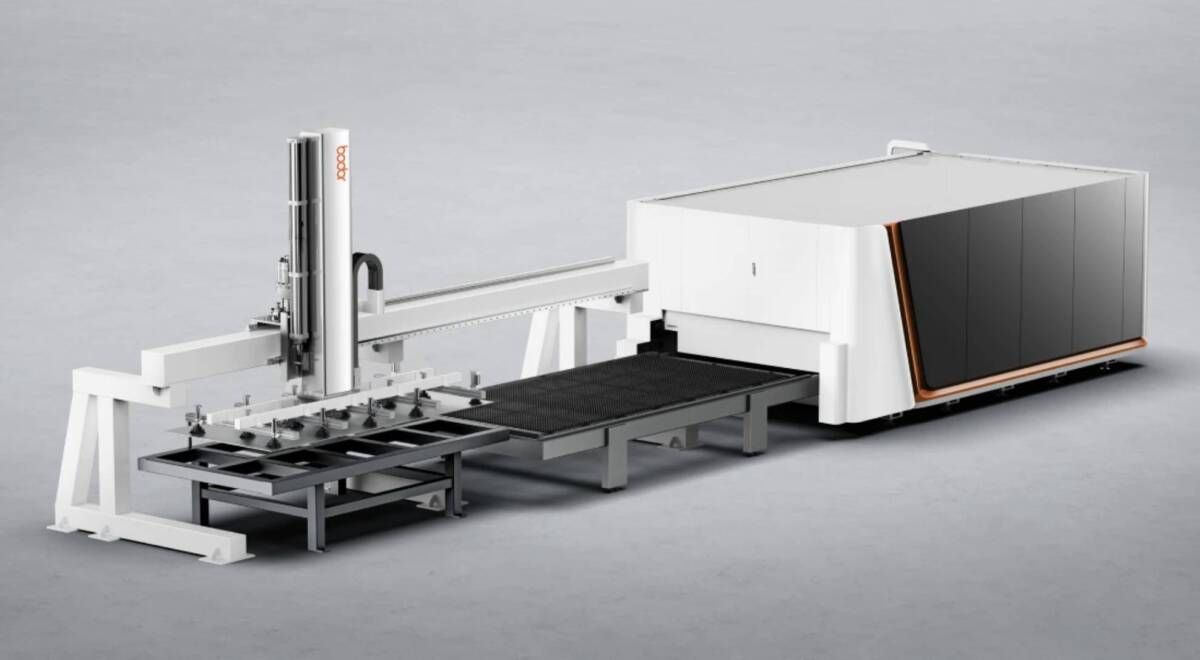

Bodor iLoader: Automatic Loading Device
The Bodor iLoader is an automatic loading device compatible with Bodor’s P/B/C Series. It achieves fully automatic loading of metal sheets without manual intervention, reducing workforce input and lowering operational risks.
Key Features:
Automatic Loading: Can automatically load metal sheets, eliminating the need for traditional loading methods.
Flexible Production: Helps in flexible production.
Thick Sheet Loading: Can automatically load metal sheets up to 20mm thick.
Max. Space Utilization: Takes up minimal floor space, maximizing production space.
Safety Protection: Combines automatic safety interlocking with the main unit to enhance safety.
Flexible Positioning: Can be positioned left or right according to the on-site processing environment.
ILoader Product Performance
| Model | Loading Dimensions | Max. Sheet Thickness | Max. Loading Sheet Size | Min. Loading Sheet Size | Overall Dimensions | Weight | Max. Loading Weight | Min. Sheet Thickness | Z-Axis Travel |
|---|---|---|---|---|---|---|---|---|---|
| iLoader 6 | 3048×1524, 1500×1200, 1000×1000 mm | 20 mm | 3048×1524 mm | 1000×1000 mm | 5000×2500×3100 mm | 1000 kg | 700 kg | 1 mm | 400 mm |
| iLoader 3 | 3048×1524, 1500×1200, 1000×1000 mm | 20 mm | 3048×1524 mm | 1000×1000 mm | 5000×2500×3100 mm | 1000 kg | 700 kg | 1 mm | 400 mm |
| iLoader 4 | 3048×1524, 1500×1200, 1000×1000 mm | 20 mm | 3048×1524 mm | 1000×1000 mm | 5000×2500×3100 mm | 1000 kg | 700 kg | 1 mm | 400 mm |
