I-TRANS

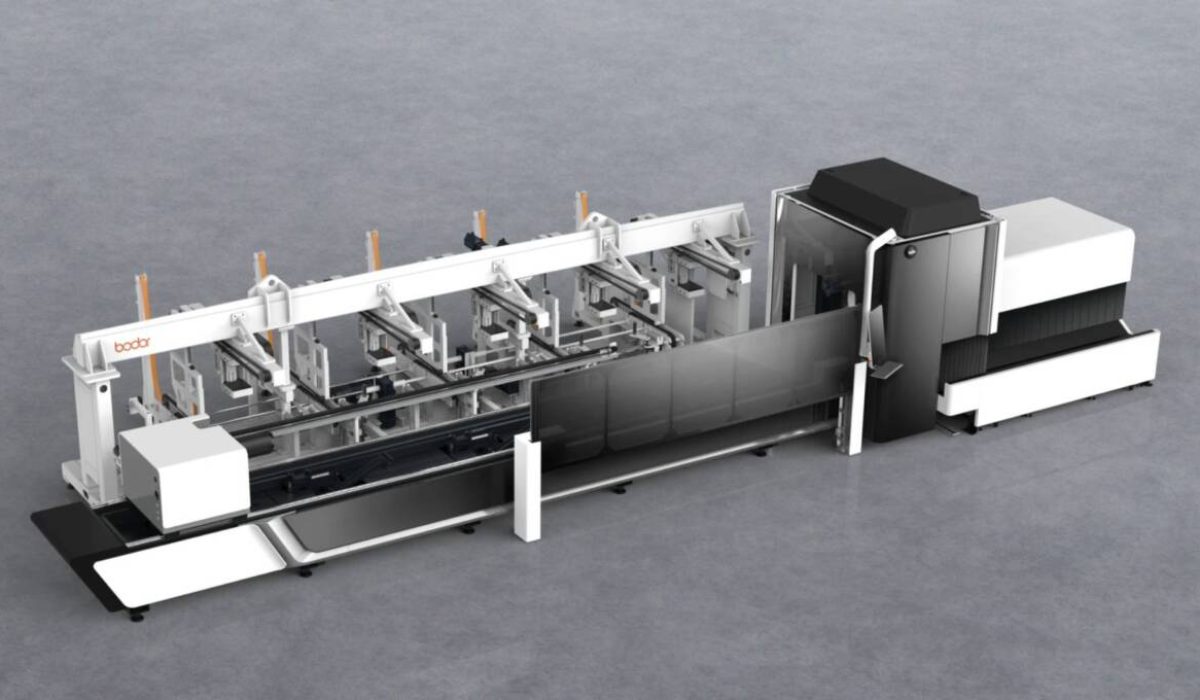

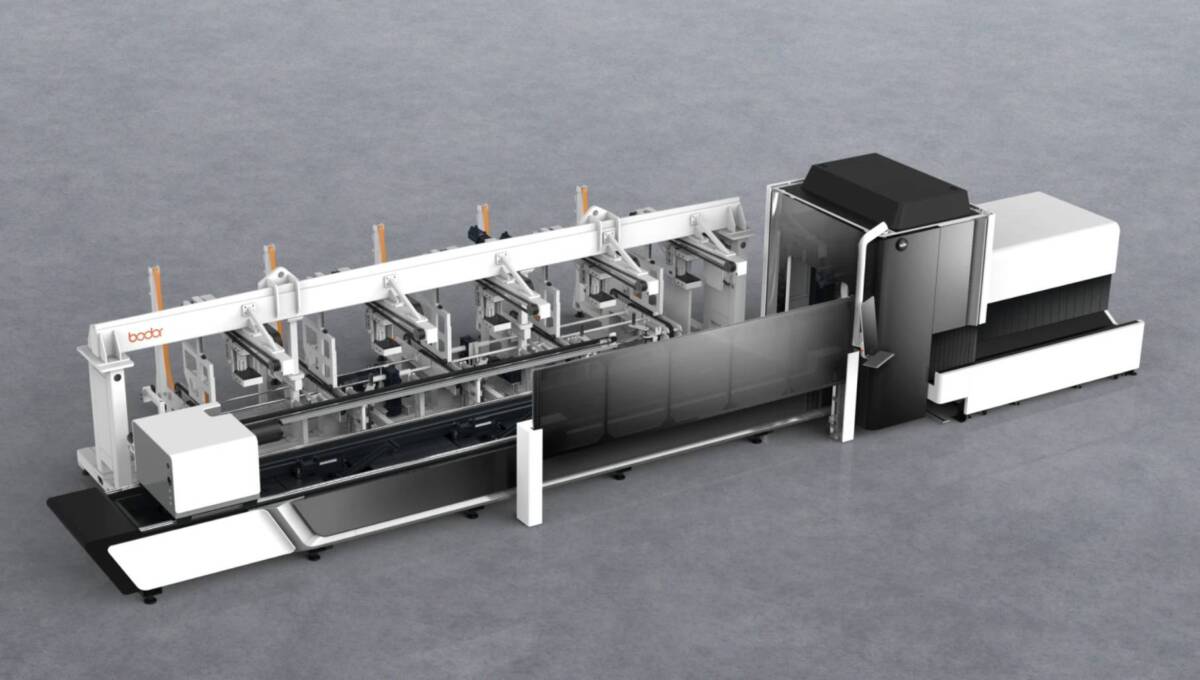

Bodor iTrans: Automatic Loading and Unloading Device
The Bodor iTrans is a fully automatic loading and unloading device compatible with various cutting machines, designed to handle sheet materials with minimal manual intervention.
Key Features:
Fully Automatic Loading and Unloading: Aims to free up manpower by automating the material handling process.
Synchronized Loading/Unloading: Can perform loading and unloading operations in parallel, overcoming traditional industry limitations.
Smart Zoning: Can load different-sized sheets, with adjustments made with a single click, reducing manual effort.
Queued Processing: Automatically processes sheets of different shapes and thicknesses in a queue.
Error Warning: Equipped with material detection, shortage alarms, and abnormal material quantity alarms, it helps reduce scrap rates.
ITrans Product Performance
| Loading Dimensions | 3000mm×1500mm | 3000mm×1500mm |
|---|---|---|
| Max. Sheet Thickness | 25mm | 25mm |
| Max. Loading Sheet Size | 3000mm×1500mm | 3000mm×1500mm |
| Min. Loading Sheet Size | 1000mm×1000mm | 1000mm×1000mm |
| Overall Dimensions | 10000mm×8500mm×2600mm | 10000mm×8500mm×2600mm |
| Weight | 4800kg | 4800kg |
| Max. Loading Weight | 900Kg | 900Kg |
| Min. Sheet Thickness | 0.8mm | 0.8mm |
