I SERIES

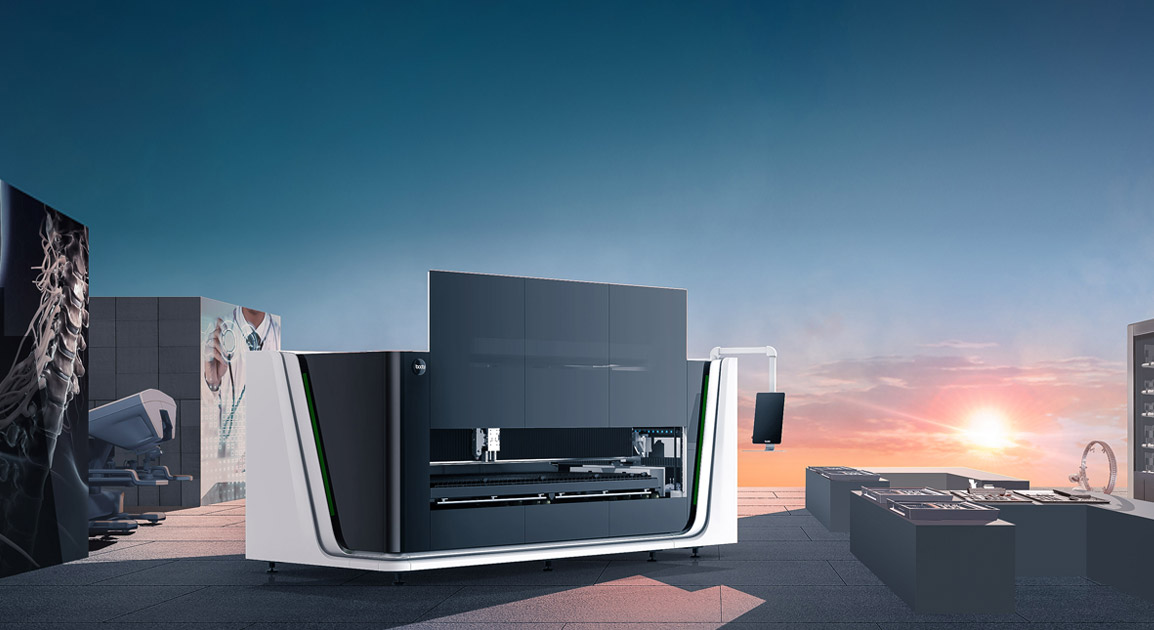

Bodor I Series: Compact Sheet Metal Laser Cutting Machine
The Bodor I Series is a compact sheet metal cutting machine designed to boost production-line productivity without taking up too much space. It features an energy-efficient and environmentally friendly design, with an enclosure that provides centralized dust collection and separates operators from machinery for safety and reliability. Powered by Bodor’s smart technology, the i Series optimizes material flow and increases output.
Key Features:
Compact Design: Minimizes floor area usage, fitting into tight layouts.
Green and Safe: Energy-efficient and environmentally friendly, with an enclosure design for centralized dust collection.
Peak Efficiency: Optimizes material flow and increases output.

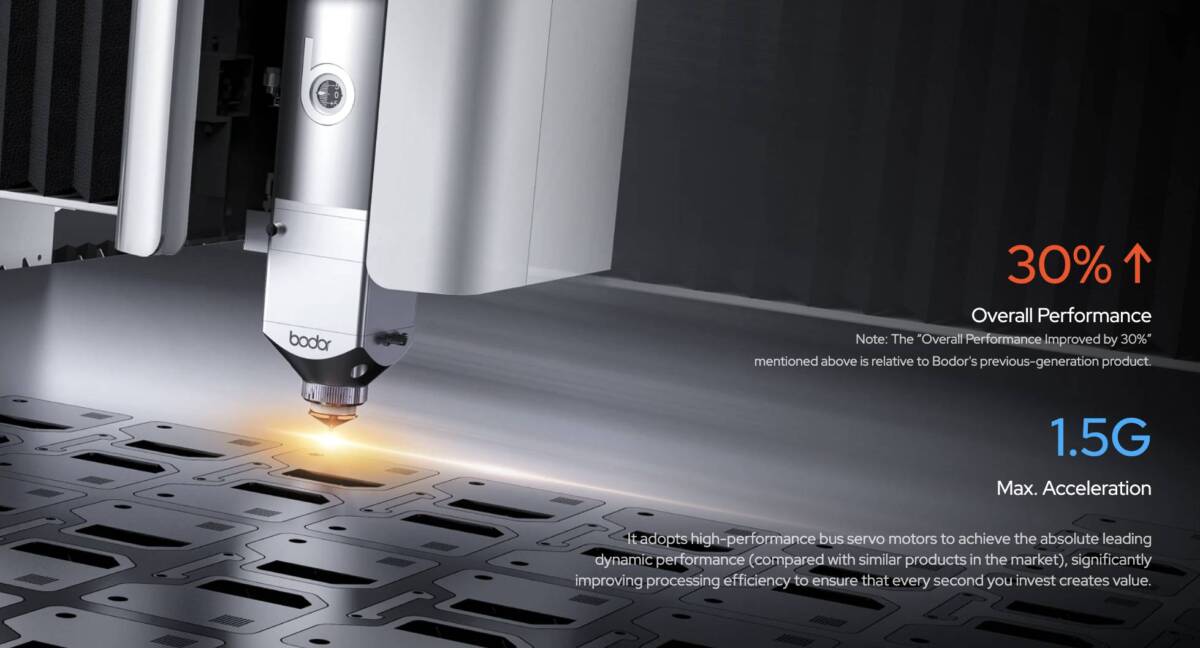

High Performance: Overall performance is improved by 30% compared to Bodor’s previous-generation products.
Fast Acceleration: It has a max acceleration of 1.5G.

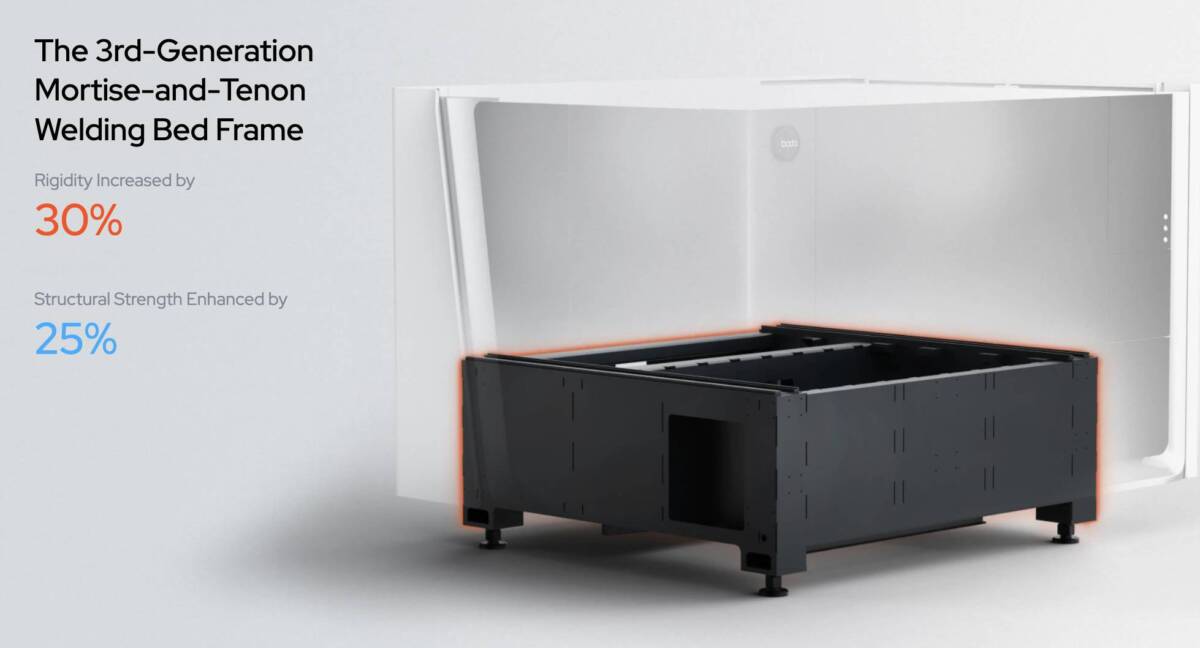

Durable Build: Features a 3rd-Generation Mortise-and-Tenon Welding Bed Frame.

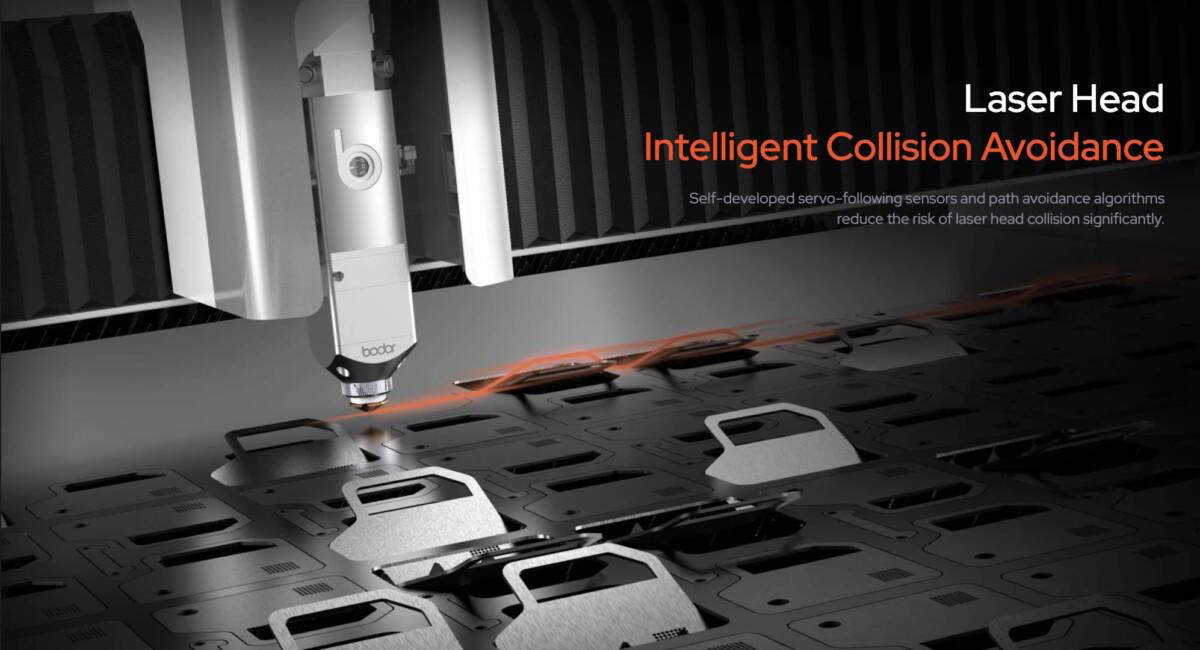

Intelligent Laser Head: Self-developed servo-following sensors and path avoidance algorithms reduce the risk of laser head collision.

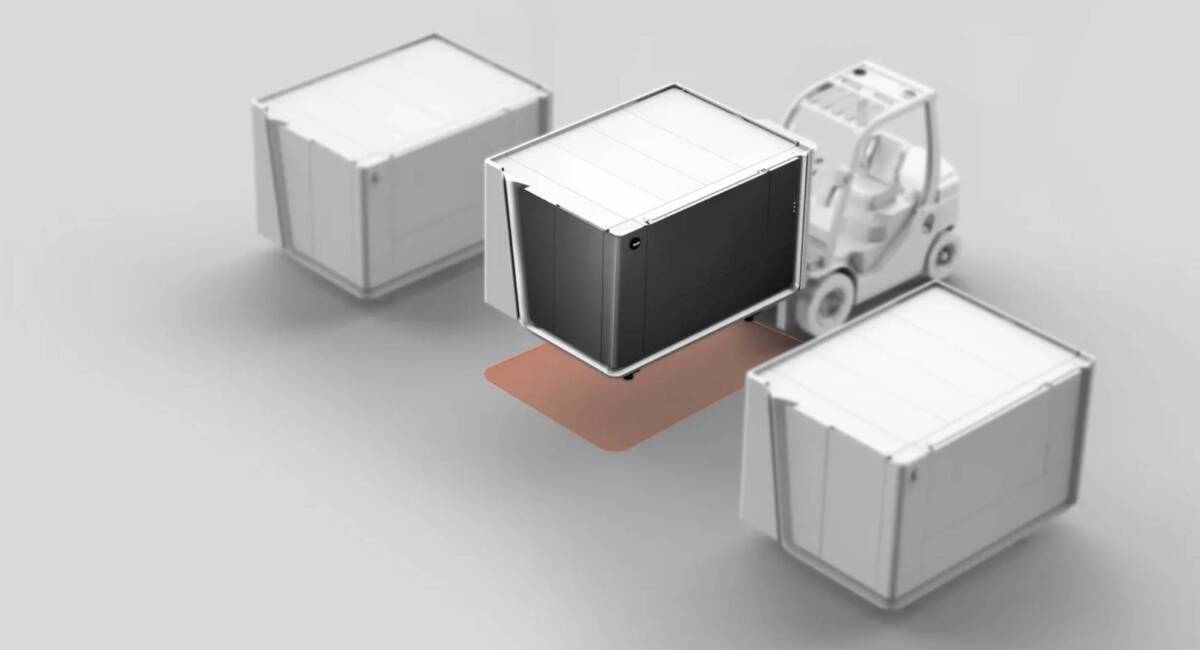

Portable: Sleek and portable design, easy to move and ready for operation upon setup.
I Series Product Performance
| Model | Table Load Capacity | Maximum Acceleration | Maximum Synchronized Speed | Positioning Accuracy | Repeat Positioning Accuracy |
|---|---|---|---|---|---|
| i7 | 900kg | 1.5G | 91m/min | ±0.05mm/m | ±0.03mm/m |
| i5 | 250kg | 1.5G | 91m/min | ±0.05mm/m | ±0.03mm/m |
