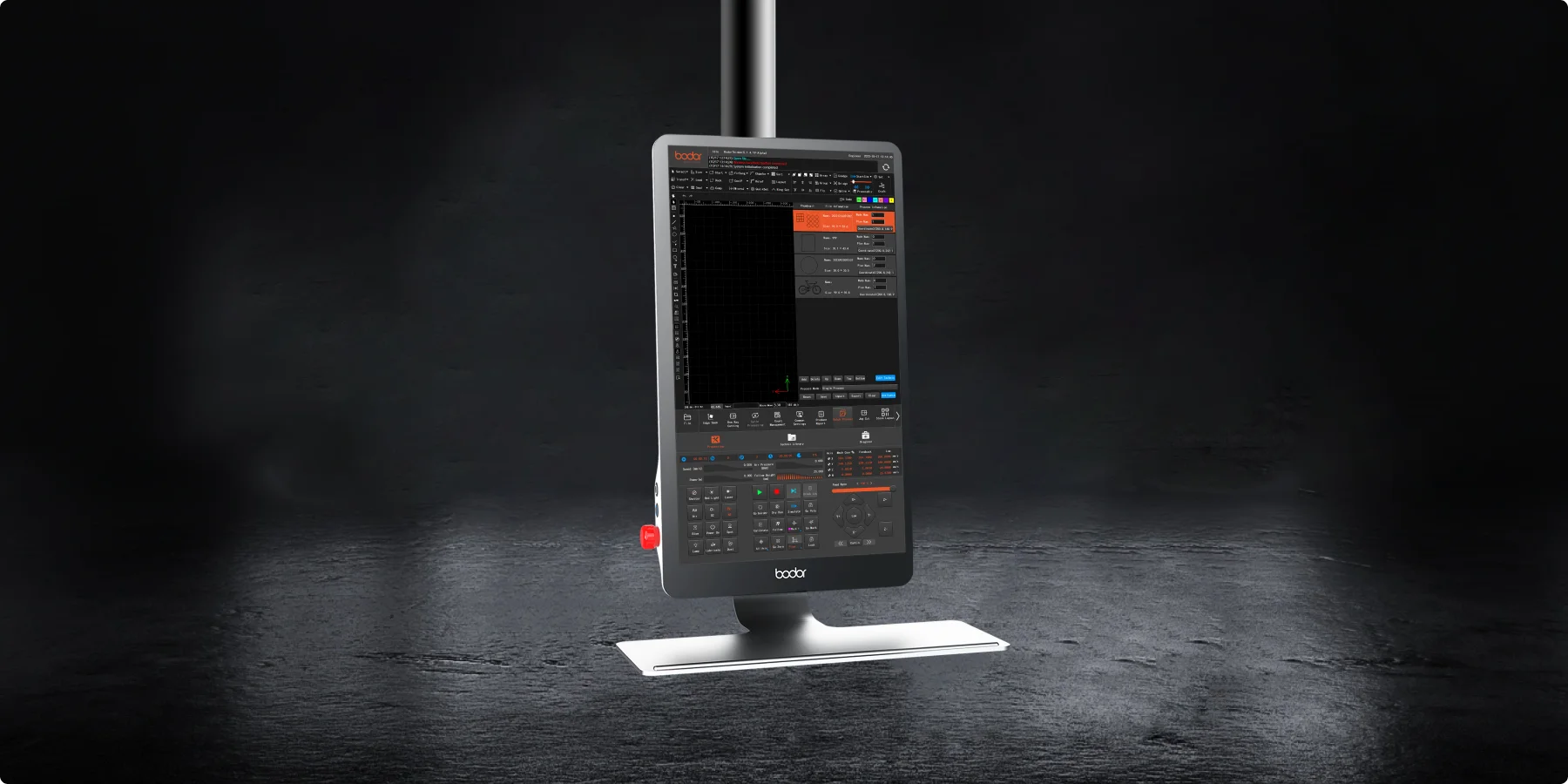

H SERIES
Precision & Power for Large-Scale Metal Cutting
The Bodor H Series delivers unmatched performance for ultra-large metal sheets with advanced fiber laser technology. Its spacious format (12m, 16m, 20m+) boosts precision, speed, and productivity—ideal for industries like manufacturing, automotive, and aerospace.
Key Features:
-

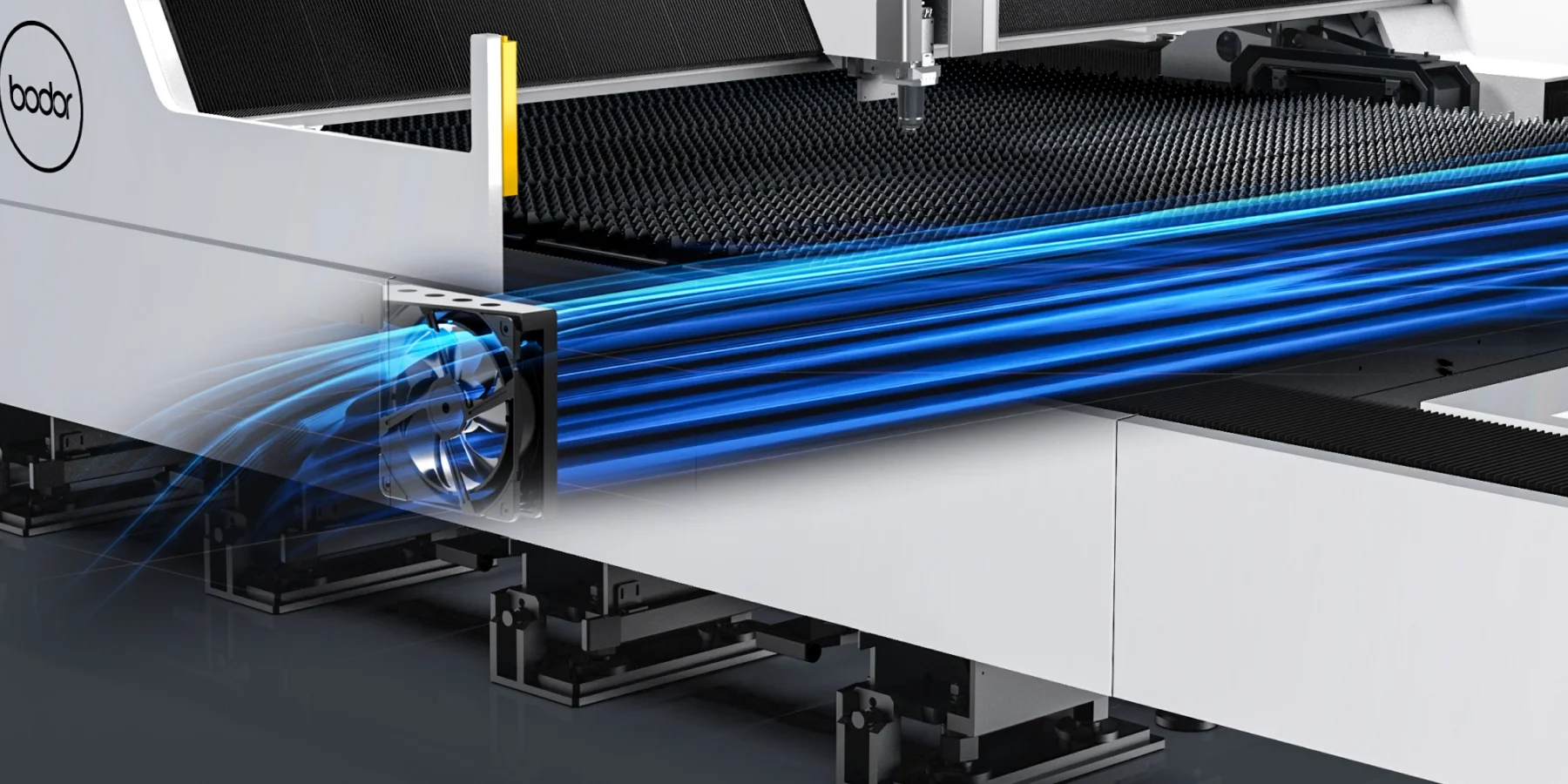

Ultra-Large Format Cutting: Modular bed handles sheets over 12m with precision and efficiency.
-
High Durability: Lightweight, rigid aluminum crossbeam with honeycomb design for fast, stable cuts.
-

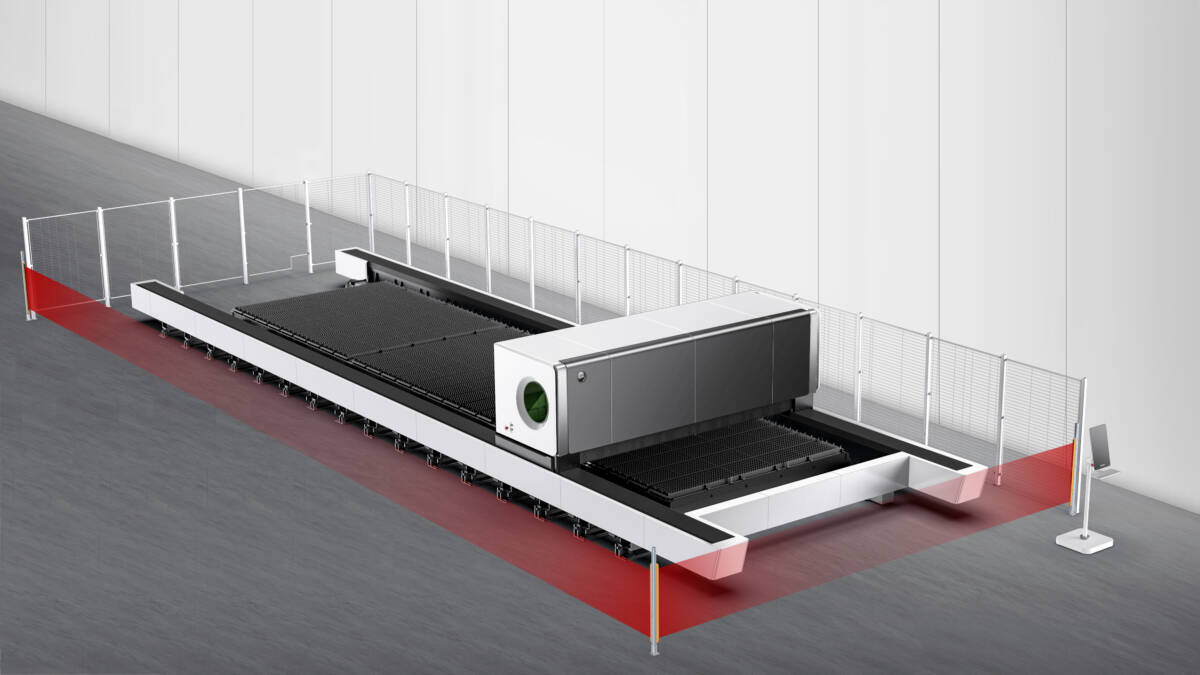

Safety First: Enclosed protective cover ensures safe, high-speed operation.
-

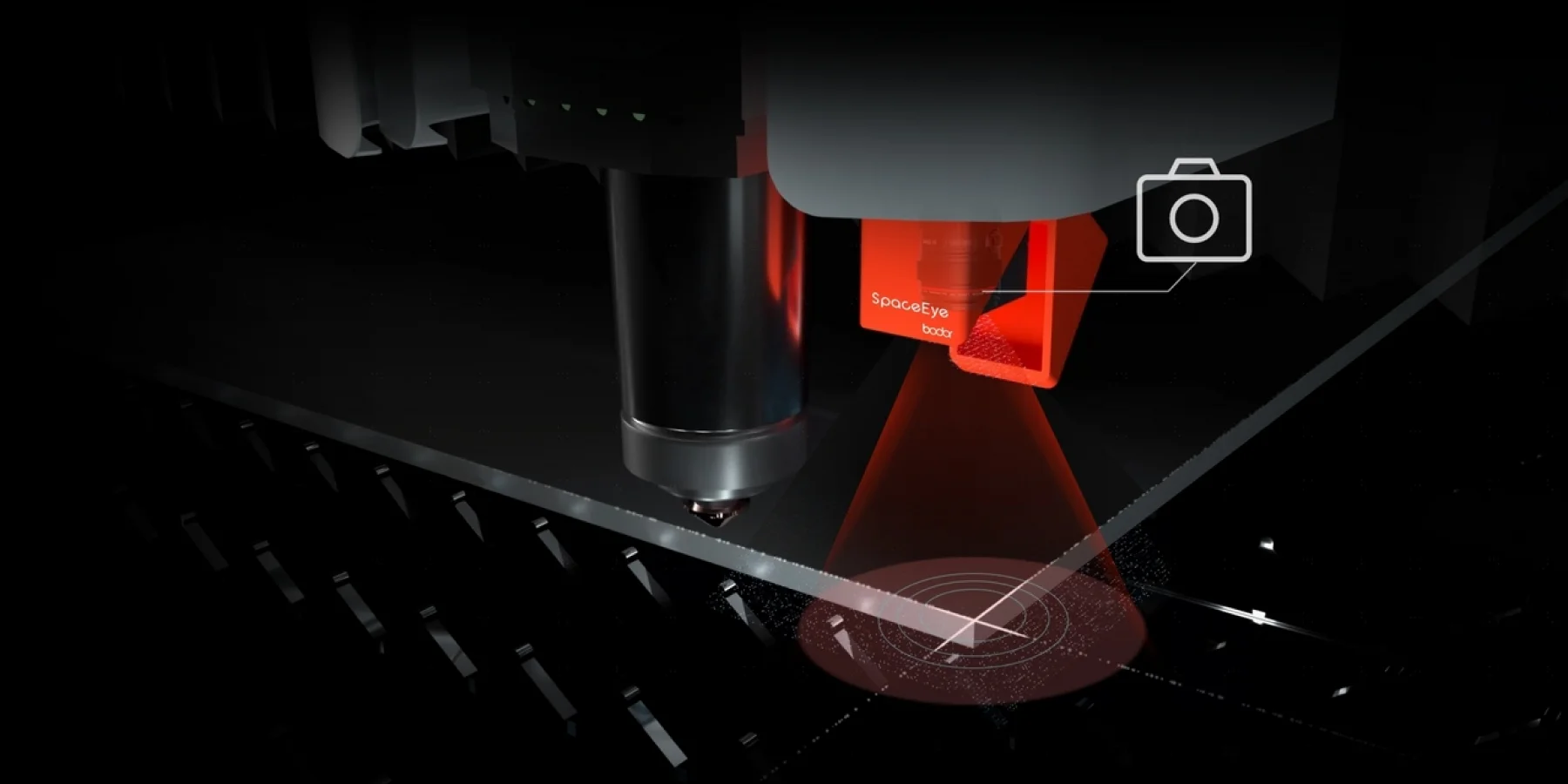

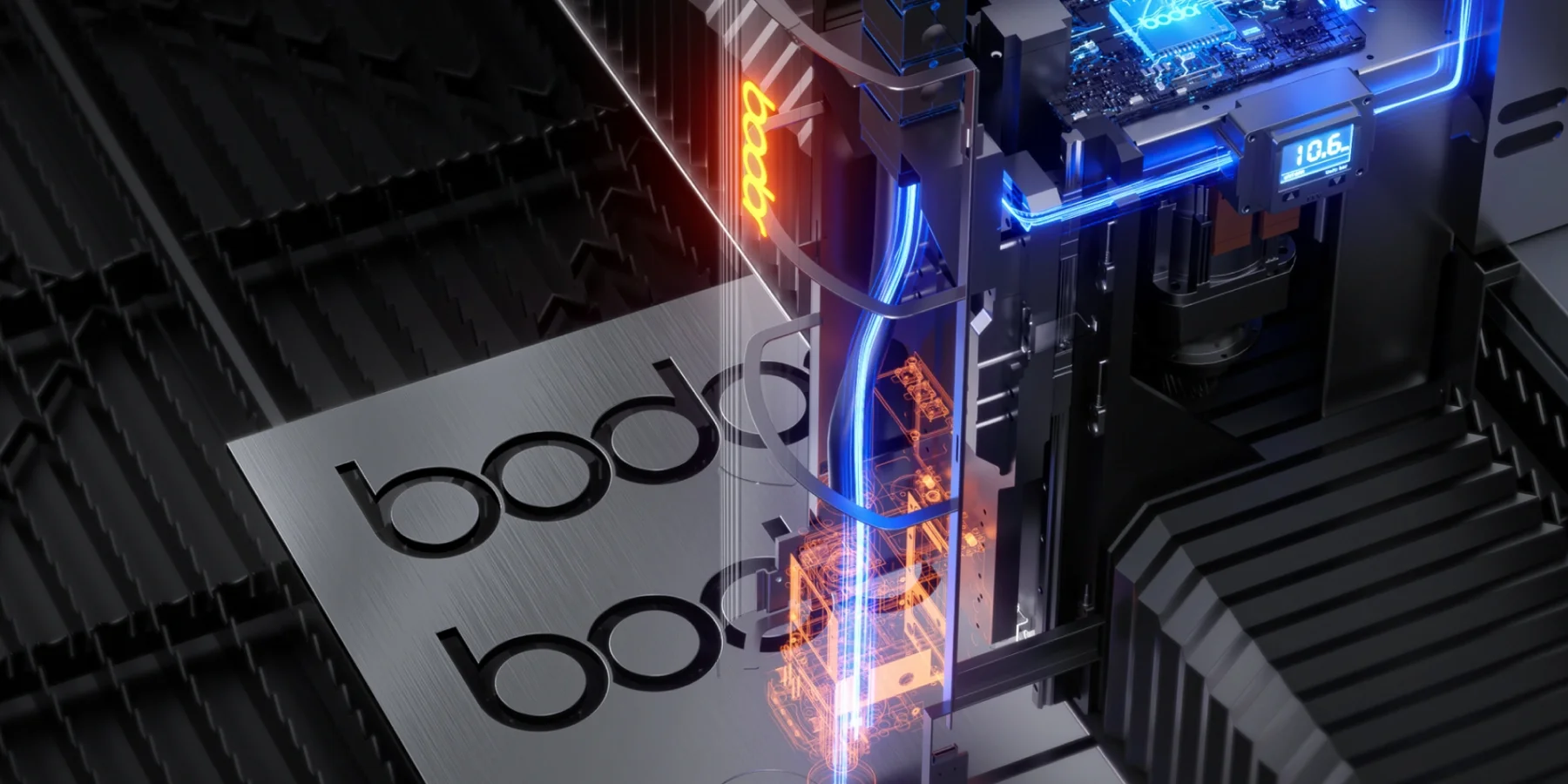

Obstacle Avoidance: BodorGenius laser head detects and avoids obstacles automatically.
-

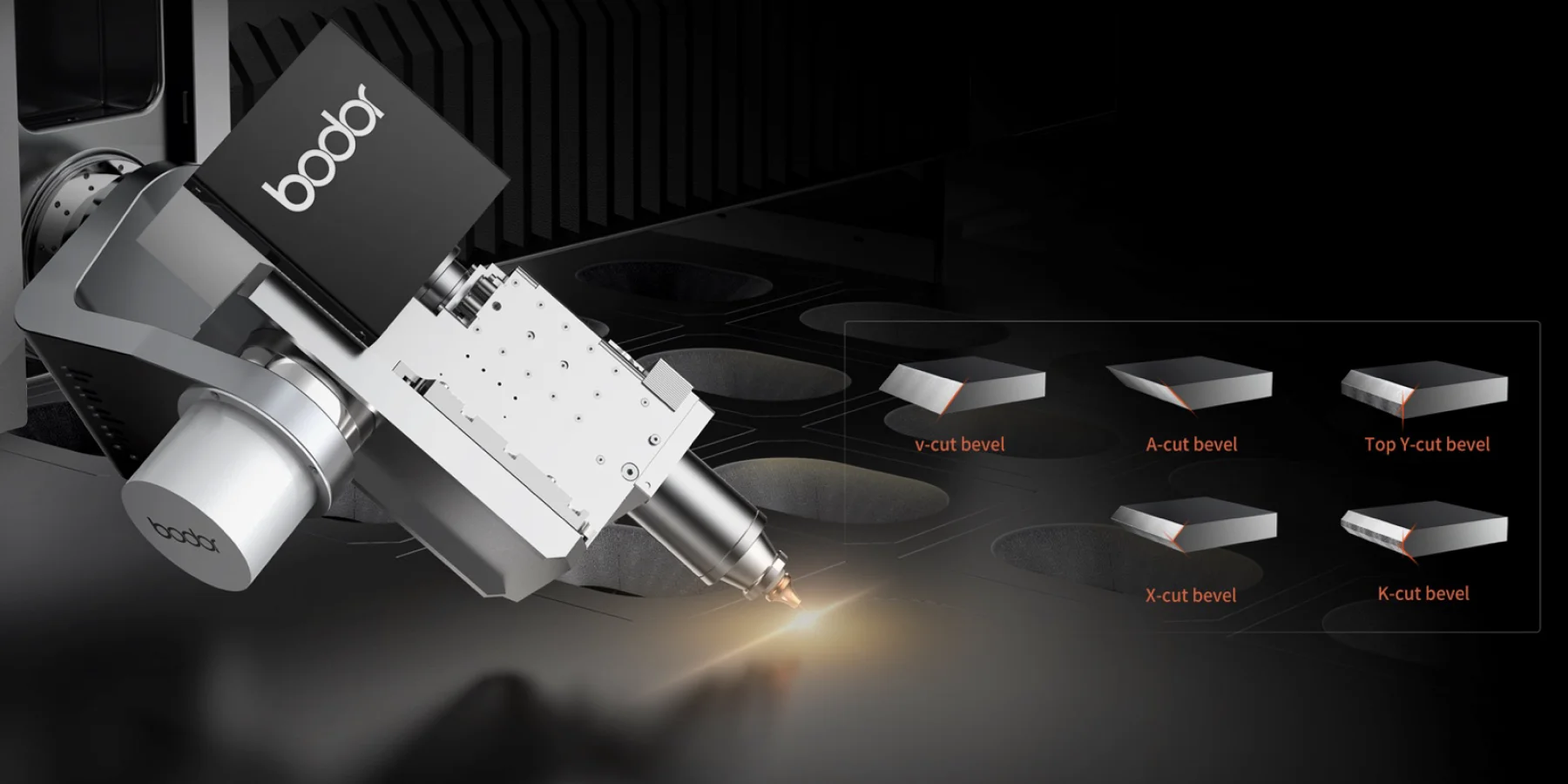

Bevel Cutting: Precision +/- 45° bevels reduce welding and assembly time.
-

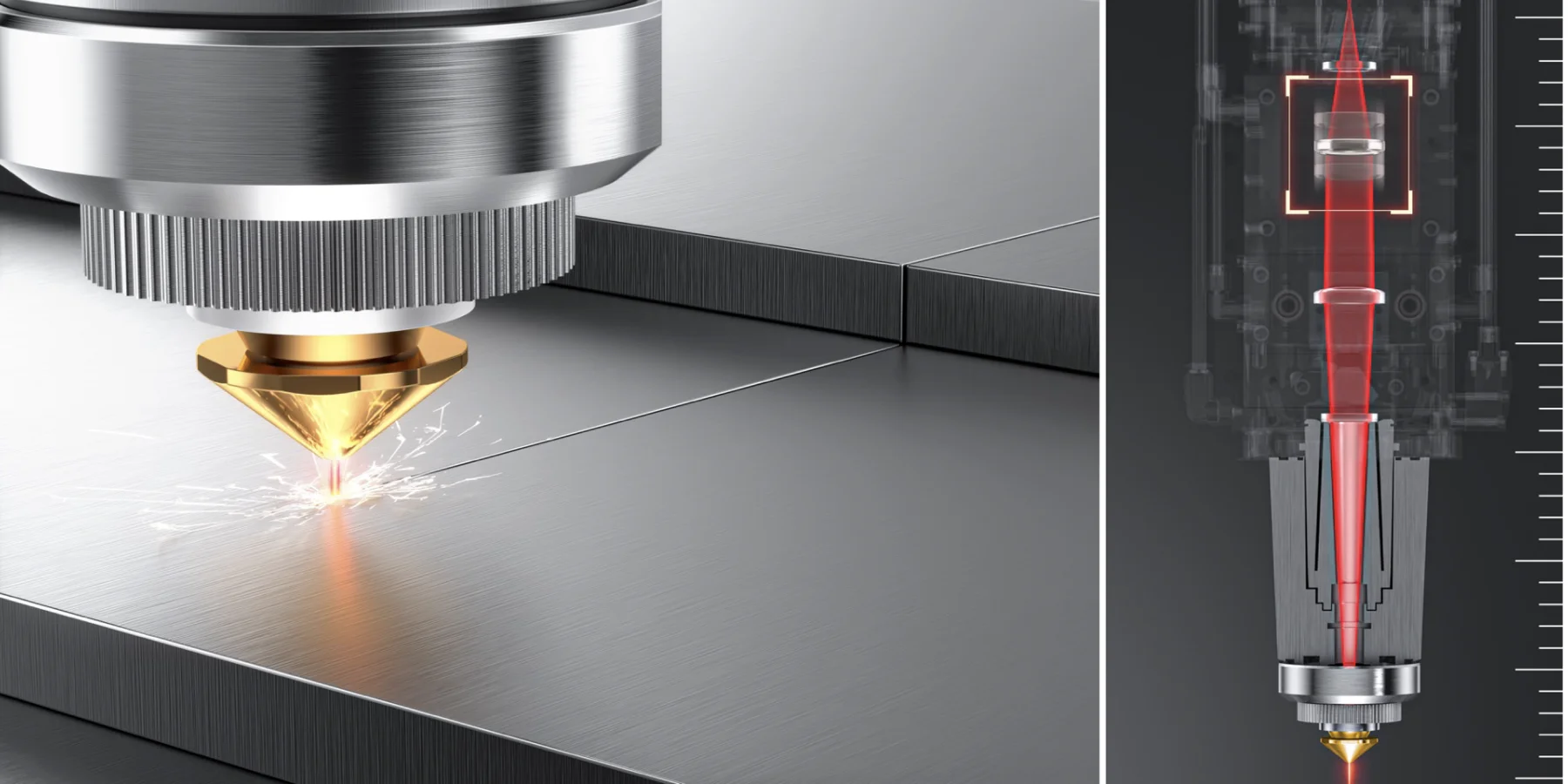

Lightning Piercing: Fast, accurate piercing for medium-thick plates.
H Series - Product Performance
| Model | Working Area | Max Linkage Speed | Max Acceleration | Z‑axis Travel | Pos. Accuracy | Repositioning Accuracy | Dimensions (L × W × H) | Table Load Bearing |
|---|---|---|---|---|---|---|---|---|
| H3000‑12 | 12 500 × 3 200 mm | 80 m/min | 0.8 G | 135 mm | ±0.05 mm/m | ±0.03 mm | 17 520 × 5 600 × 2 100 mm | 17 000 kg |
| H3000‑16 | 16 500 × 3 200 mm | 80 m/min | 0.8 G | 135 mm | ±0.05 mm/m | ±0.03 mm | 22 200 × 5 600 × 2 100 mm | 24 000 kg |
| H3000‑20 | 20 500 × 3 200 mm | 80 m/min | 0.8 G | 135 mm | ±0.05 mm/m | ±0.03 mm | 26 200 × 5 600 × 2 100 mm | 30 000 kg |
| H3000‑24 | 24 500 × 3 200 mm | 80 m/min | 0.8 G | 135 mm | ±0.05 mm/m | ±0.03 mm | 30 200 × 5 600 × 2 100 mm | 36 000 kg |
| H4000‑12 | 12 500 × 4 200 mm | 80 m/min | 0.8 G | 135 mm | ±0.05 mm/m | ±0.03 mm | 18 200 × 6 600 × 2 000 mm | 24 000 kg |
| H4000‑16 | 16 500 × 4 200 mm | 80 m/min | 0.8 G | 135 mm | ±0.05 mm/m | ±0.03 mm | 22 200 × 6 600 × 2 000 mm | 32 000 kg |
| H4000‑20 | 20 500 × 4 200 mm | 80 m/min | 0.8 G | 135 mm | ±0.05 mm/m | ±0.03 mm | 26 200 × 6 600 × 2 000 mm | 40 000 kg |
| H4000‑24 | 24 500 × 4 200 mm | 80 m/min | 0.8 G | 135 mm | ±0.05 mm/m | ±0.03 mm | 30 200 × 6 600 × 2 000 mm | 48 000 kg |
| H5000‑32 | 32 500 × 5 150 mm | 80 m/min | 0.8 G | 135 mm | ±0.05 mm/m | ±0.03 mm | 40 300 × 7 900 × 2 360 mm | 78 000 kg |
