HCUT SERIES

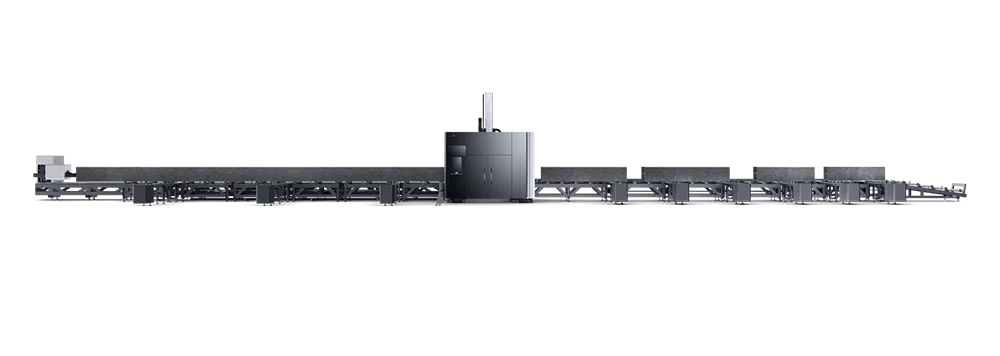

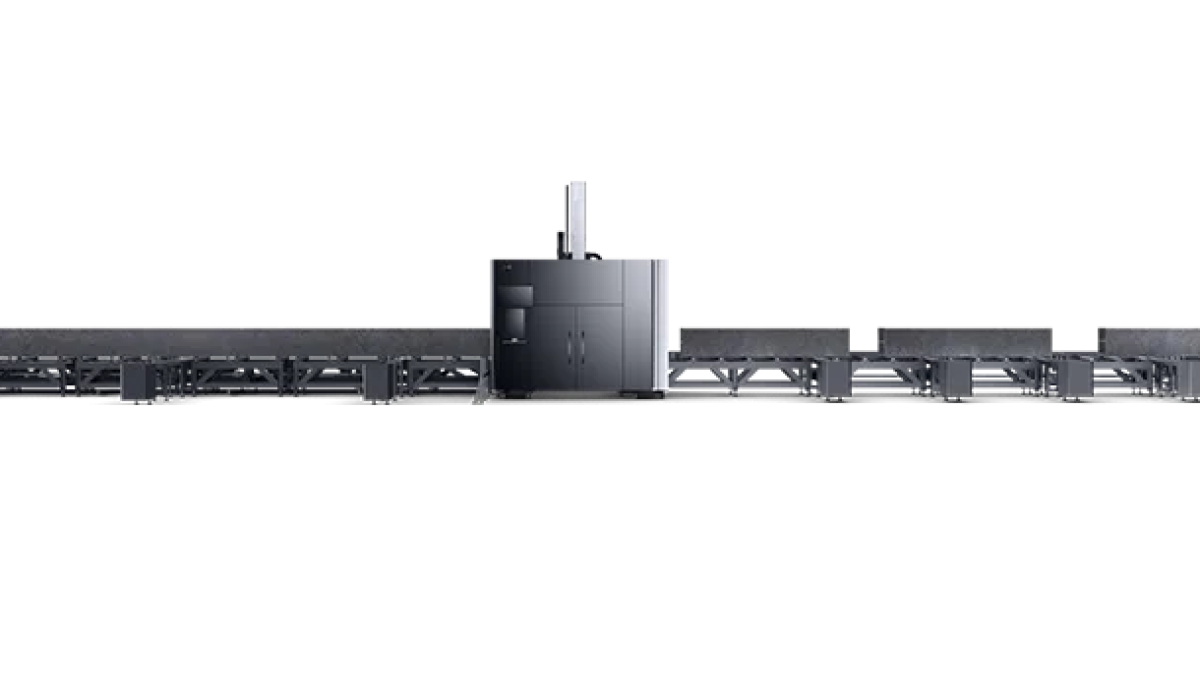

Bodor HCut: Profile Steel Laser Cutting Machine
The Bodor HCut is a profile steel laser cutting machine that combines six production procedures into one to maximize processing efficiency. It is designed for H-beam steel processing.
Key Features:
Automatic Operation: From loading to unloading, reducing labor and time.
Increased Efficiency: Shortened loading and reduced sorting time.
One Machine, Six Procedures: Boosting production efficiency by 200%.
Automatic Loading: Completed in under 20 seconds without manual intervention.

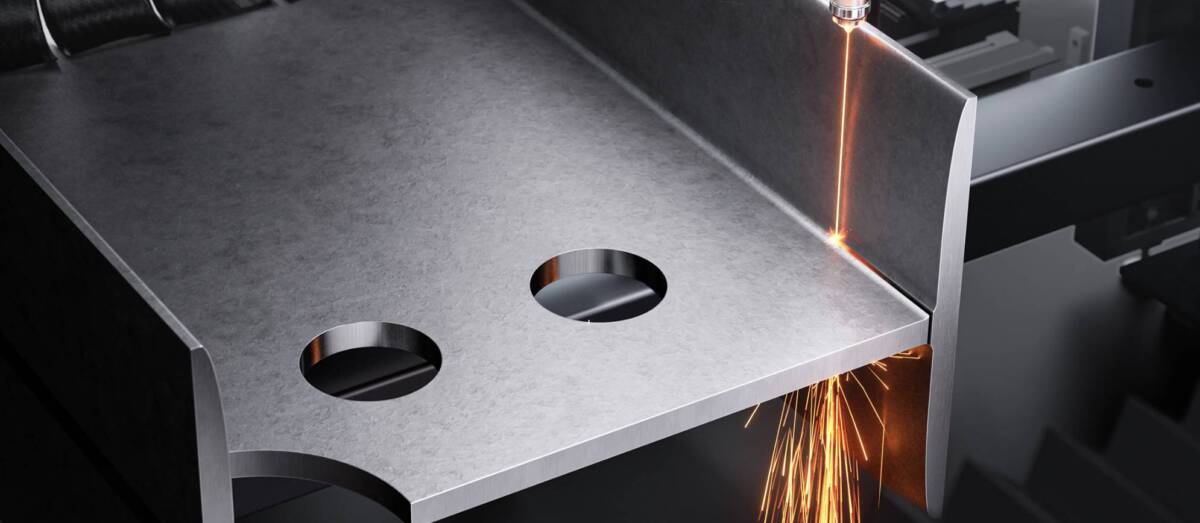

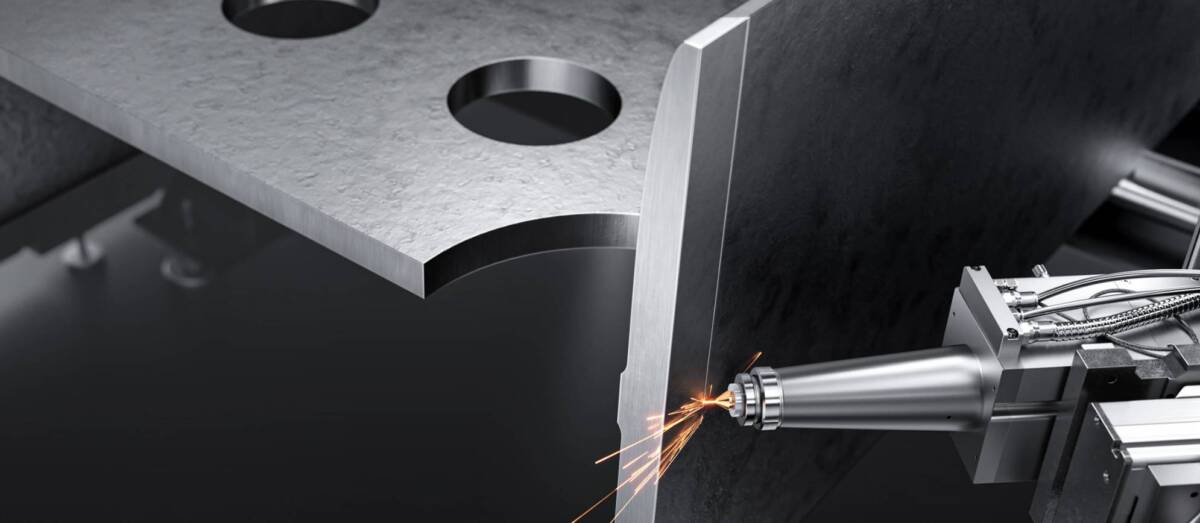

5-axis Cutting Linkage: For optimal cutting effect.
Adaptation to Tekla Drawings: For stress-free ungrouping.
HCUT Product Performance
| Parameter | Value |
|---|---|
| Processing Range (Profile) | 600mm×300mm-1000mm×600mm |
| Processing Length | 6200mm-13500mm |
| Powers | 12kW, 24kW |
| Overall Dimensions | 36660mm×6260mm×4240mm |
