C SERIES

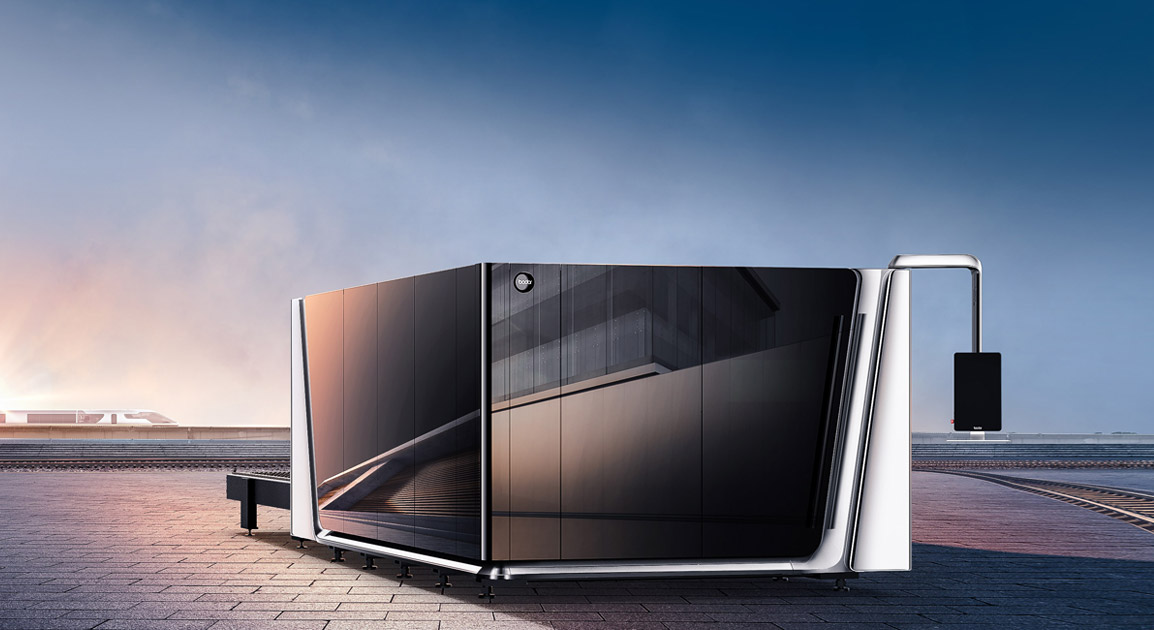

Bodor C Series: Classic Fully Protective Sheet Laser Cutting Machine
The Bodor C Series is a classic model of a fully protective sheet laser cutting machine.
Key Features:
-
Safe Production: Features a protective enclosure, ensuring maximum safety for operators.
-
Reliable Quality: Equipped with a 3rd-generation mortise-and-tenon bed frame and mineral cast anti-burn plate that extends the machine’s life.
-
Simple Operation: Simplifies operation with smart cutting parameter auto-match and remnants layout.
-
Efficiency Improved: Adopts high-performance bus servo motors to achieve leading dynamic performance, improving processing efficiency.
-
Laser Scanning Cutting: Offers high energy absorption rate within the cutting area.
-
Fearless High-Reflective Sheets: Unaffected by back reflection when cutting high-reflective sheets.
-
Various Bevels Cutting: Supports A, V, Y, X, and K-type bevel cutting.
-
Follow-Up Zoned Dedusting: Creates a clean environment with real-time monitoring and precise zoned dedusting.
-
Remnants Layout: Allows for one-click remnant layout by uploading a photo of remnants.
-
Laser Head Intelligent Collision Avoidance: Reduces the risk of laser head collision.
-
Automatic Devices: Optional automatic loading systems are available.
C Series Product Performance
| Model | Working Area | Max. Linkage Speed | Max Acceleration | Z-axis travel | Positioning Accuracy | Repositioning Accuracy | Dimensions | Table Load Bearing |
|---|---|---|---|---|---|---|---|---|

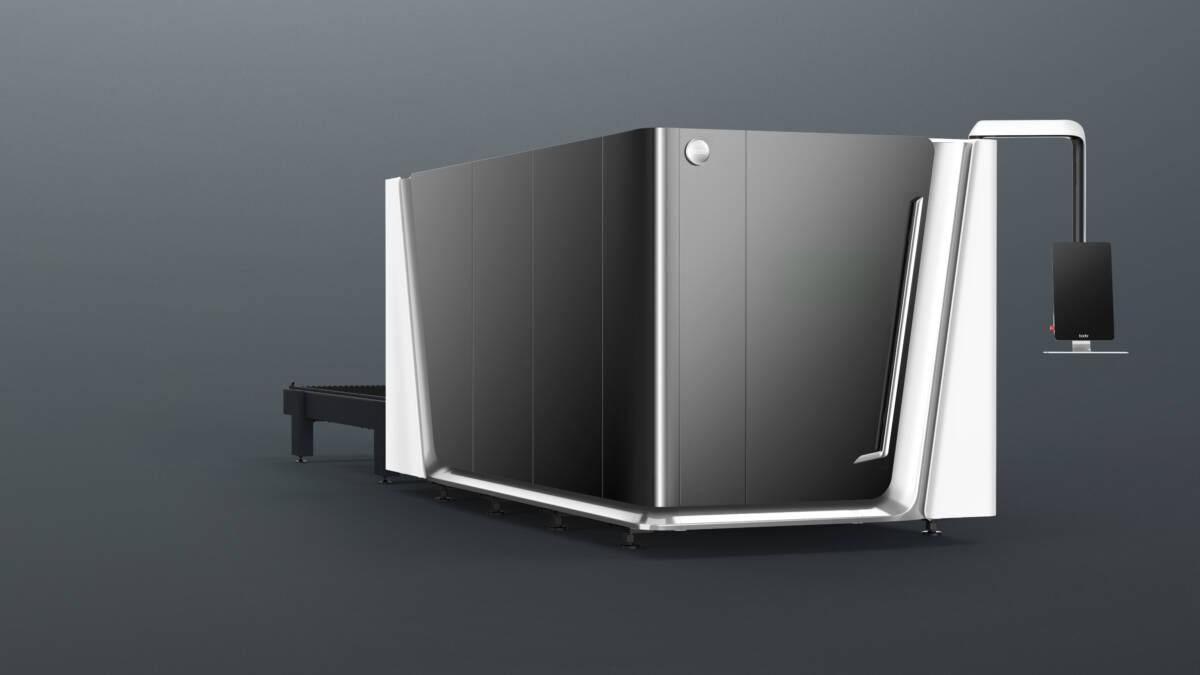

| C3 | 3048mm x 1524mm | 120m/min | 1.5G | 320mm | +-0.05mm/m | +-0.03mm | 9392mm x 2232mm x 2307mm | 1-6kW: 911kg(25mm), 12kW: 1095kg(30mm), 22-30kW: 1460kg(40mm) |

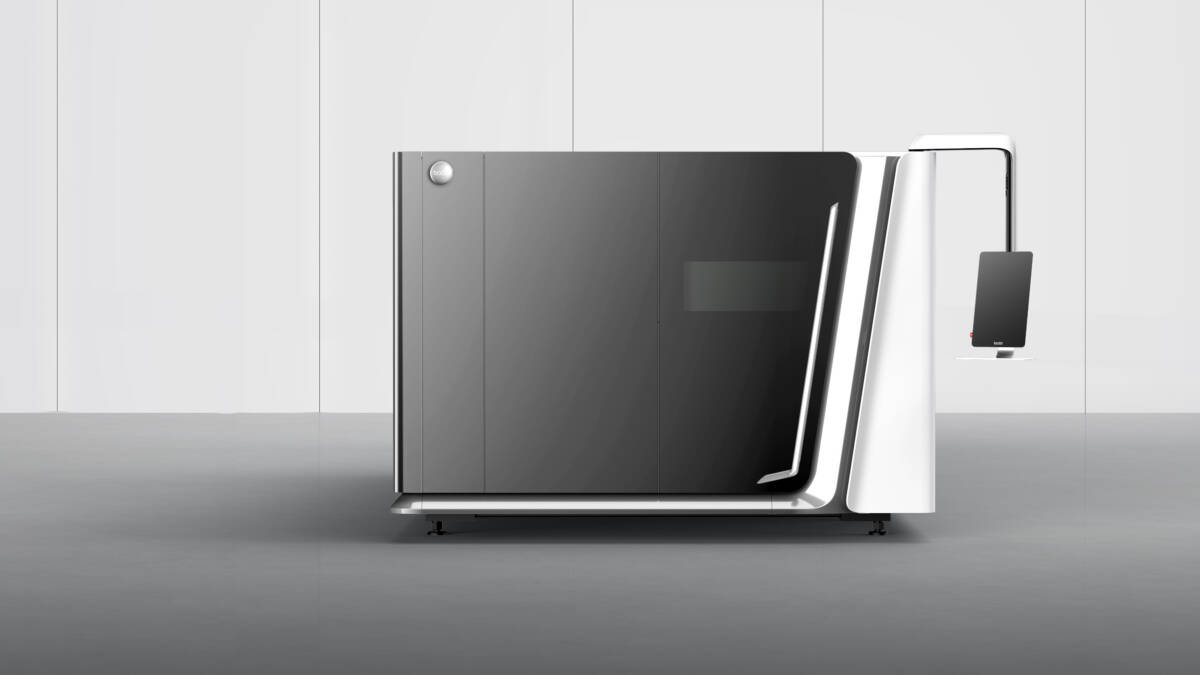

| C4 | 4000mm x 2000mm | 110m/min | 1.5G | 370mm | +-0.05mm/m | +-0.03mm | 11,388mm x 3235mm x 2311mm | 1-6kW: 1570kg(25mm), 12kW: 1886kg(30mm), 22-30kW: 2515kg(40mm) |
| C6 | 6100mm x 2500mm | 110m/min | 1.5G | 370mm | +-0.05mm/m | +-0.03mm | 15,500mm x 3880mm x 2440mm | 1-6kW: 2995kg(25mm), 12kW: 3595kg(30mm), 22-30kW: 4794kg(40mm) |
| C12 | 12,200mm x 2500mm | 110m/min | 1.5G | 370mm | +-0.05mm/m | +-0.03mm | 29,310mm x 4050mm x 2550mm | 12kW: 7368kg(30mm), 22-60kW: 9825kg(40mm) |
