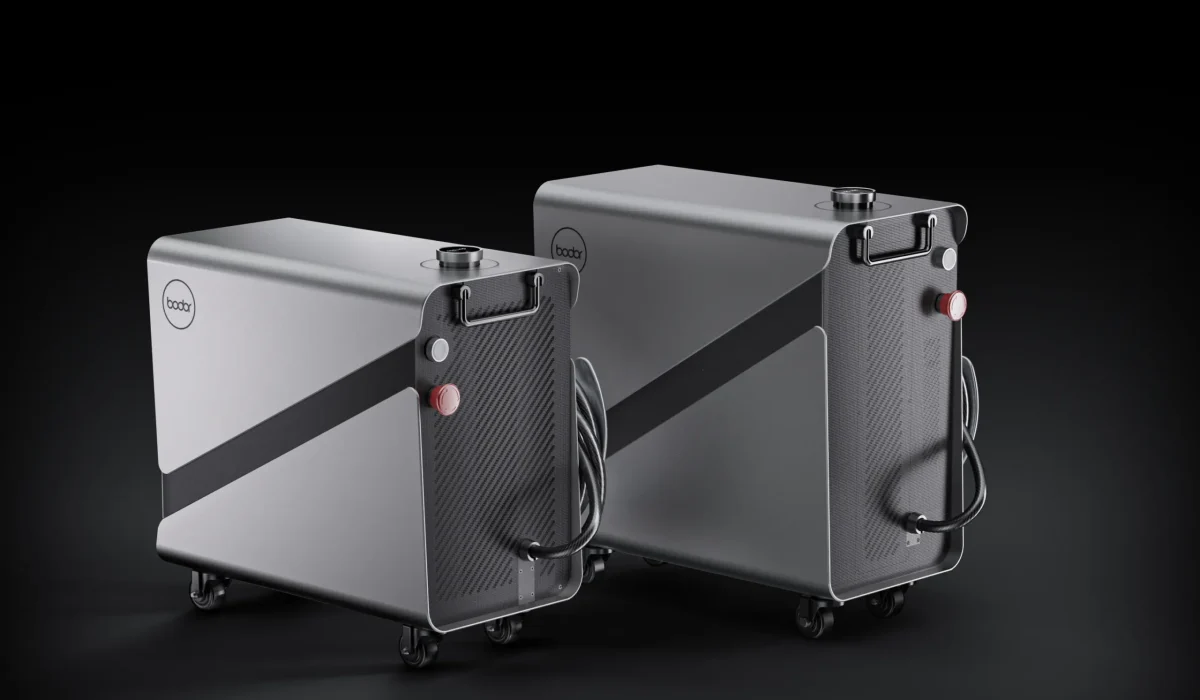

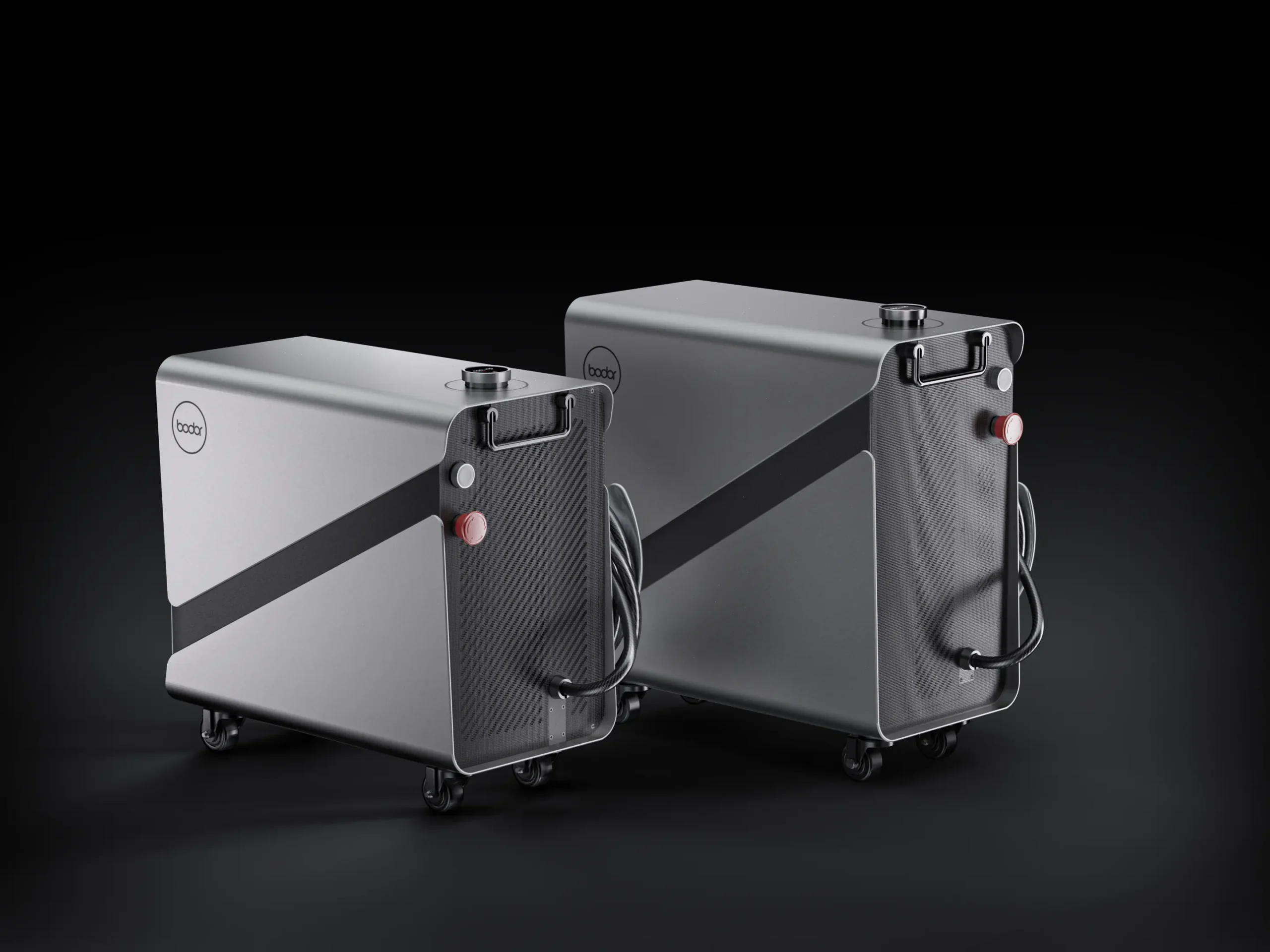

Bodor Air1200: Handheld Laser Welding Machine

The Bodor Air Series self-cooling handheld laser welder pioneers continuous light output with innovative air cooling technology. Powered by the BodorPower and the BodorThinker control system, the Air Series delivers full-power light output. Bodor’s massive welding process database provides step-by-step guidance, making it the perfect tool for beginners to learn and master the art of welding. Air Series seamlessly blends superior weld quality, aesthetically pleasing seams, and exceptional strength to create masterpieces of precision and beauty. All welding parameter settings and storage are finished through the intuitive knob design. Air Series takes up only 0.11 m³ of space, effortlessly transporting your welding capabilities to any project without space limitations.


Key Features:

  • Innovative Air Cooling Technology: Pioneers continuous light output.


  • Full-Power Brilliance: Delivers full-power light output with BodorPower and BodorThinker control system.


  • Ideal for Beginners: Provides step-by-step guidance from Bodor’s massive welding process database.


  • Superior Quality: Blends superior weld quality, aesthetically pleasing seams, and exceptional strength.


  • Effortless Operation: All welding parameter settings and storage are finished through the intuitive knob design.


  • Unmatched Portability: Takes up only 0.11 m³ of space for easy transport.


  • Steady Output: Operates reliably across a wide temperature range (-20℃ to 40℃).

Air Series Product Performance

FeatureBodor Air1200
Powers1200W
Overall Dimensions530mm×380mm×590mm
Operating Temperature-20℃~40℃
Storage temperature range-25℃~45℃
Fiber Length5m
Welding Thickness (CS)4mm
Welding Thickness (SS)4mm
Welding Thickness (AL)3.5mm
Operating Voltage100V-240V
Operating Frequency50Hz/60Hz
Weight40kg
Welding Thickness (Brass)1.5mm
